Chassis up rebuild on Stewart Warner tabletop 5 tube

Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Ragwire on Fri Oct 04, 2013 12:22 am

Just some pictures of a “chassis up” restoration of my Stewart Warner model 9160K, 5 tube. Circa 1952.

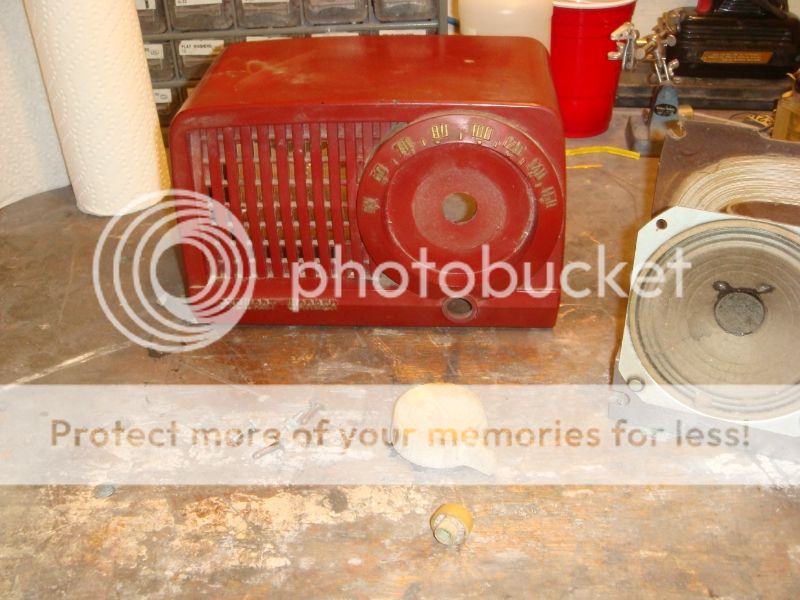

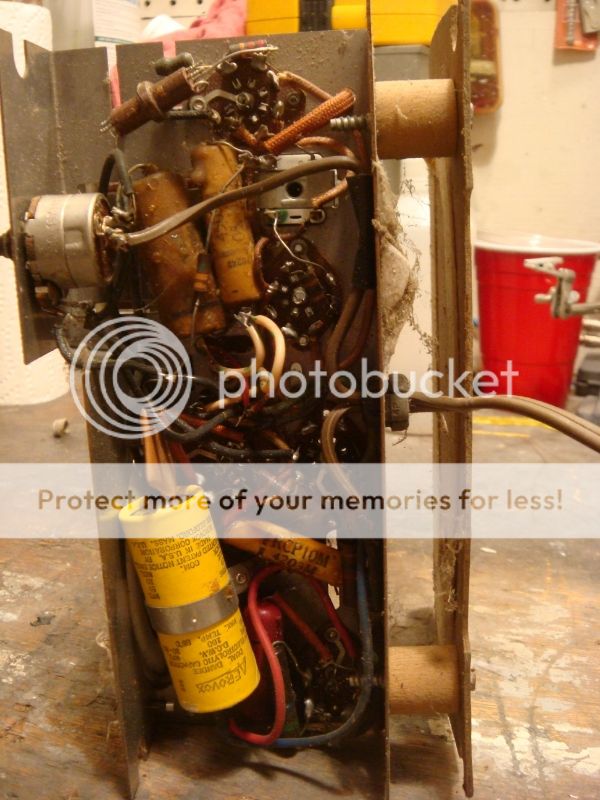

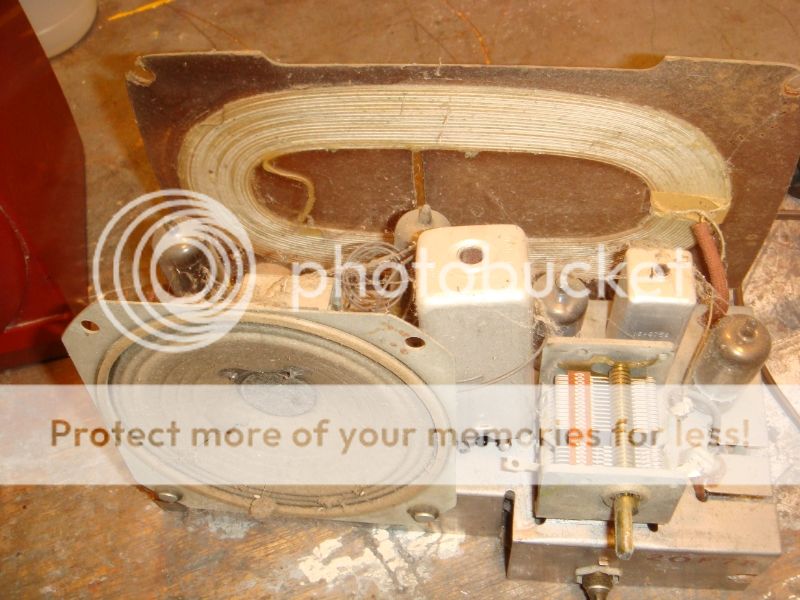

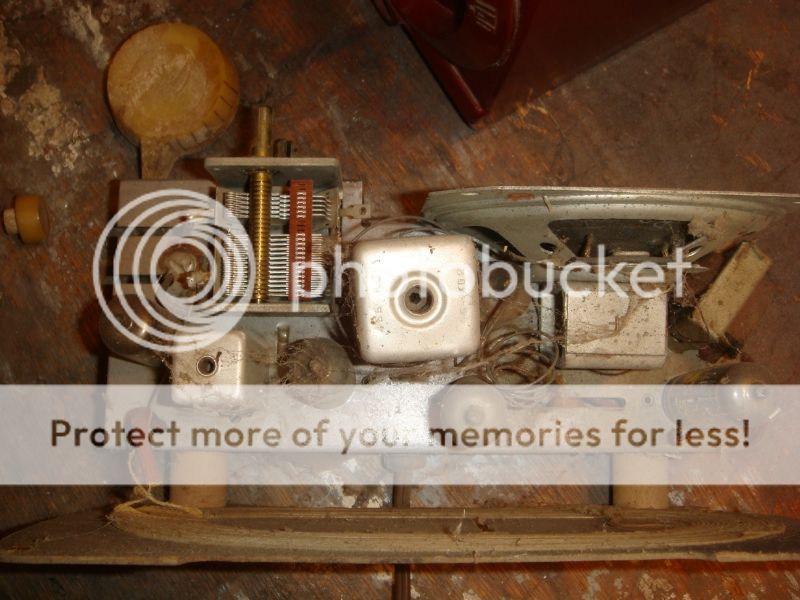

As found…well, I took the chassis out of the cabinet here... Speaker is hopeless…one IF can had a wire not soldered and a strange little RF choke added at some point.

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-2_zps05ef06a6
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-1_zps01b17ff1
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-3_zps77dec3ff
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-5_zpseb883704


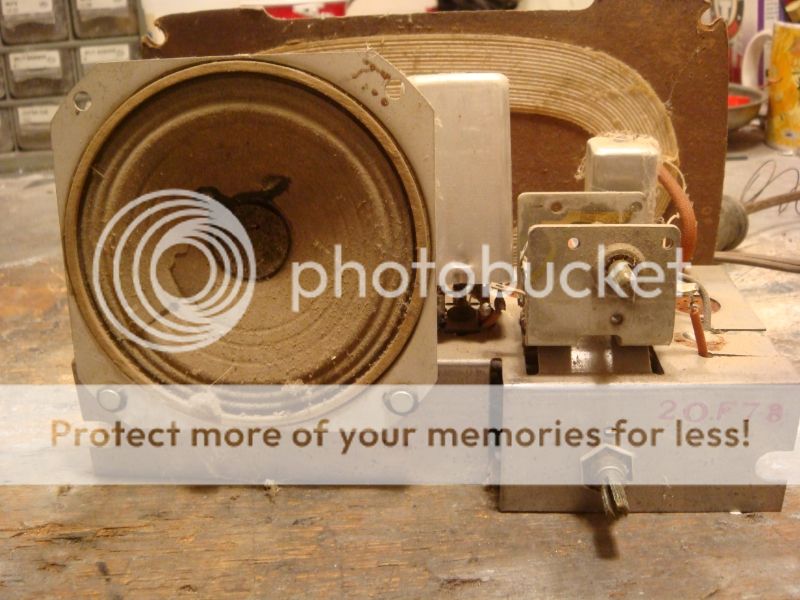

Get a laugh out of the one oversized IF can with the shield partially held on by an excess of baling wire:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-4_zps913b7f95


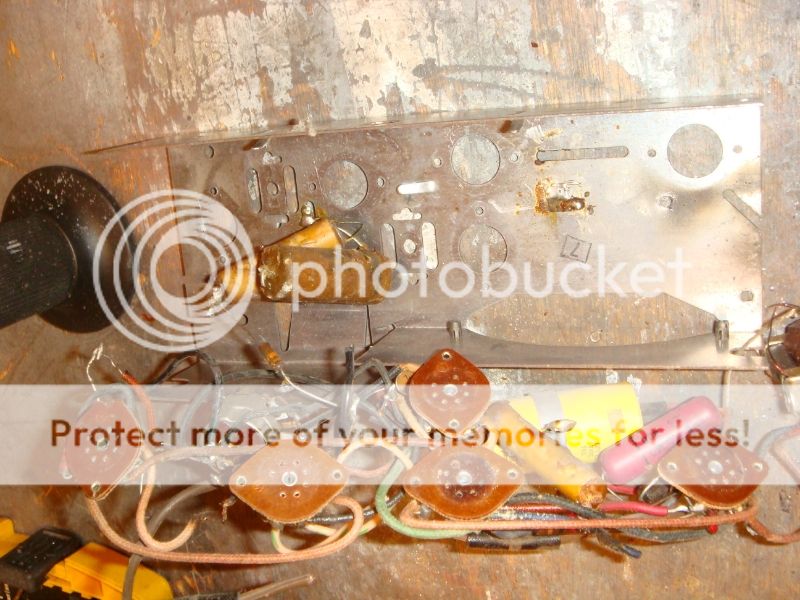

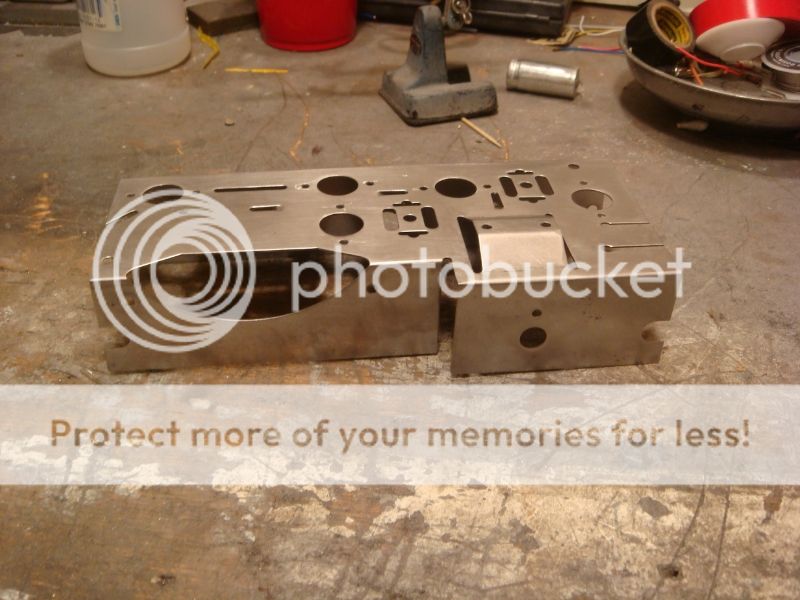

Gutted like a fish. The chassis stamping needs cleaned up and started over with:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-6_zpsc22c0a1f
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-7_zpsf282b6f2


New sockets:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-8_zps3e20c7bc


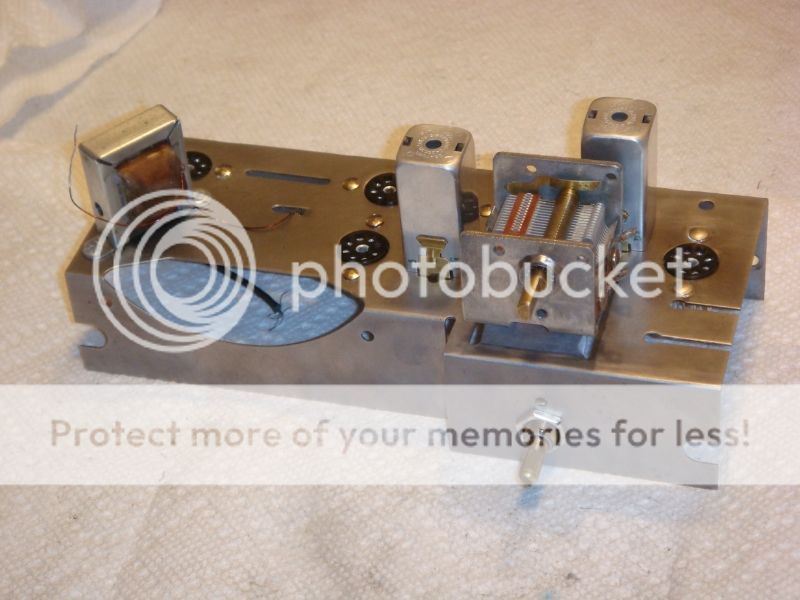

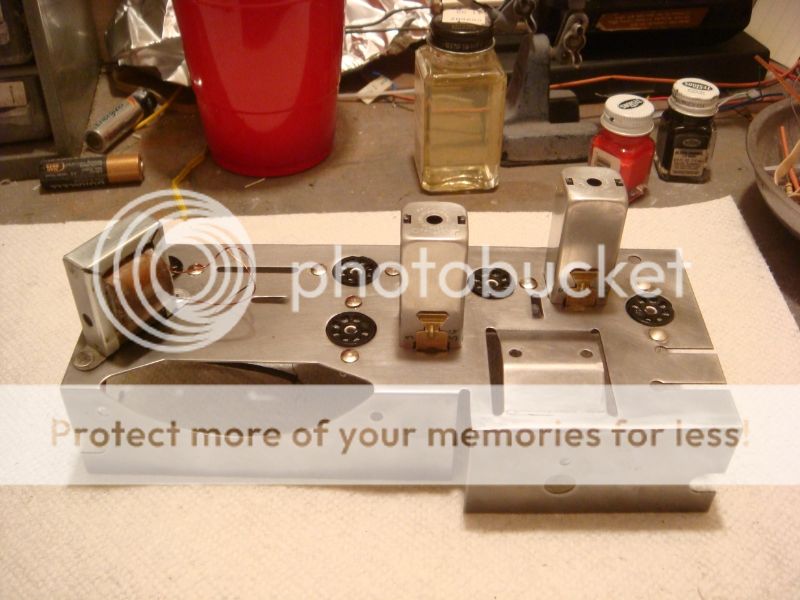

I knew I kept those IF cans from a scrapped Westinghouse for a reason:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-9_zps28dd901a
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-10_zps746281c8


Filament circuit test:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-11_zpsc815ea55


Making vintage looking resistors and capacitors out of new ones:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-12_zps64ea71f3


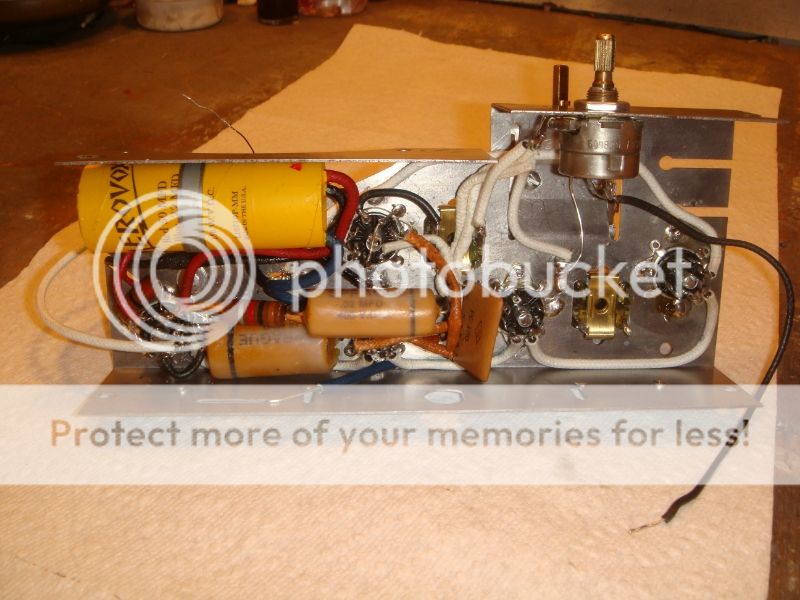

Almost done except for the front end: (Yes, all thes capacitors and resistors are new.)

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-13_zps00ad2e66


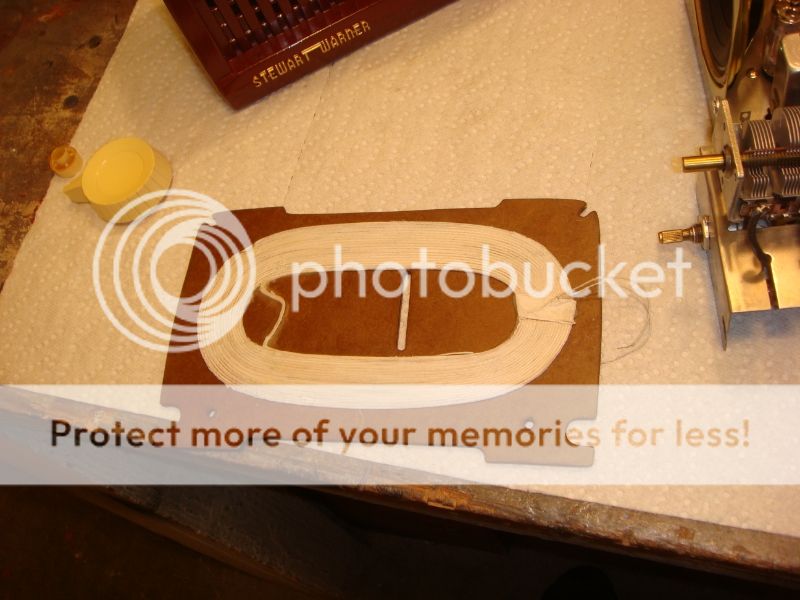

New back panel made from a masonite clipboard:

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-14_zps7900242d


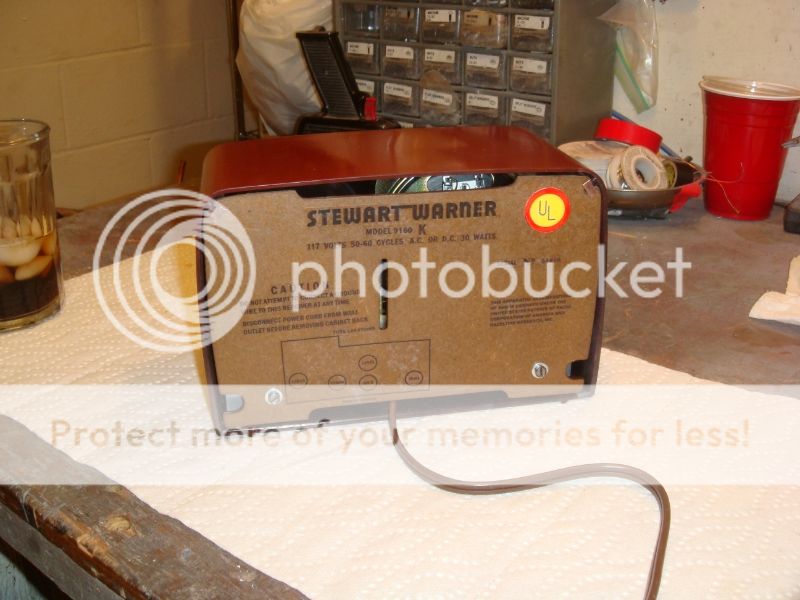

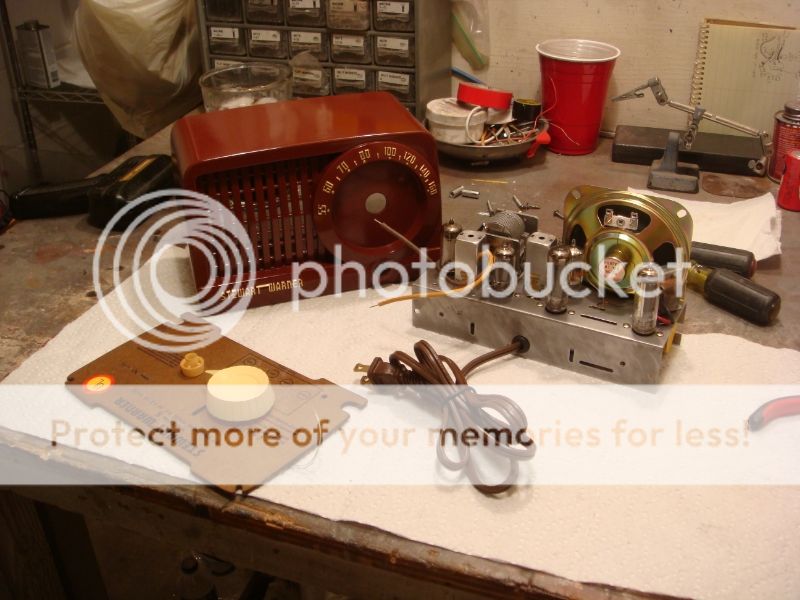

New paint: (They came from the factory painted in different colors over the dark brown bakelite.)
Took a while, but I was able to match the old color pretty closely.

Chassis up rebuild on Stewart Warner tabletop 5 tube SW-15_zps5d00630b
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-16_zpscb9d00bc
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-18_zps5f45cbf8
Chassis up rebuild on Stewart Warner tabletop 5 tube SW-17_zpsec960651


New speaker, new tubes, new most things and the rest cleaned and tested…Sounds good…loud and clear!
Ragwire
Ragwire
Member
Member

Number of posts : 510
Registration date : 2013-05-20

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Bill Cahill on Fri Oct 04, 2013 3:56 am

Wow!!!!!!!!!!! Now, that's what I call a fantastic job!!!!!!!!!!
Great work!!

_________________
Please also join us here; www.videokarma.org/index.php
Bill Cahill
Bill Cahill
Admin
Admin

Number of posts : 4419
Age : 69
Registration date : 2008-03-12

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Wildcat445 on Fri Oct 04, 2013 1:23 pm

Nice job! How did you do the graphics on the back?

Regards

WC

Wildcat445
Member
Member

Number of posts : 4893
Registration date : 2011-09-19

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by 75X11 on Fri Oct 04, 2013 5:47 pm

Definitely a thing of beauty!
75X11
75X11
Member
Member

Number of posts : 4453
Age : 64
Registration date : 2013-03-10

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Ragwire on Fri Oct 04, 2013 8:53 pm

Thank you guys!

75...The back are clear water slide decals run through the printer. Clear laquer on the back panel so they lay down right. Solvaset applied to make them lay down properly, too, and then flat clear laquer over top. (Hobby store stuff for plastic modelers and model railroaders.)

cheers,
Rob
Ragwire
Ragwire
Member
Member

Number of posts : 510
Registration date : 2013-05-20

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Resistance is Futile on Sat Oct 05, 2013 1:21 am

Now That's what I'm Talking about, Radios!
Resistance is Futile
Resistance is Futile
Member
Member

Number of posts : 912
Registration date : 2008-03-12

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Ragwire on Sat Oct 05, 2013 9:54 am

Resistance is Futile wrote:Now That's what I'm Talking about, Radios!
Gotta love the simple old AA5...More time restoring, less time troubleshooting! Laughing
Ragwire
Ragwire
Member
Member

Number of posts : 510
Registration date : 2013-05-20

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Bill Cahill on Sat Oct 05, 2013 10:54 am

I think you should make that radio for me as an early chiristmas present.
You did a really great job. Can you paint mine inred??
Nice job.

_________________
Please also join us here; www.videokarma.org/index.php
Bill Cahill
Bill Cahill
Admin
Admin

Number of posts : 4419
Age : 69
Registration date : 2008-03-12

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by sprman on Sat Oct 05, 2013 3:24 pm

Nice pictures and great job well done..

sprman
Member
Member

Number of posts : 323
Age : 65
Registration date : 2008-03-27

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Tony V on Sat Oct 05, 2013 10:44 pm

Fantastic job! I'm impressed!
Tony V
Tony V
Moderator
Moderator

Number of posts : 757
Age : 51
Registration date : 2008-09-13

Back to top Go down

Chassis up rebuild on Stewart Warner tabletop 5 tube Empty Re: Chassis up rebuild on Stewart Warner tabletop 5 tube

Post by Ragwire on Sun Oct 06, 2013 7:25 pm

Thanks guys. I love this hobby! Just bought me first tube tester. (posted on a different thread.)
