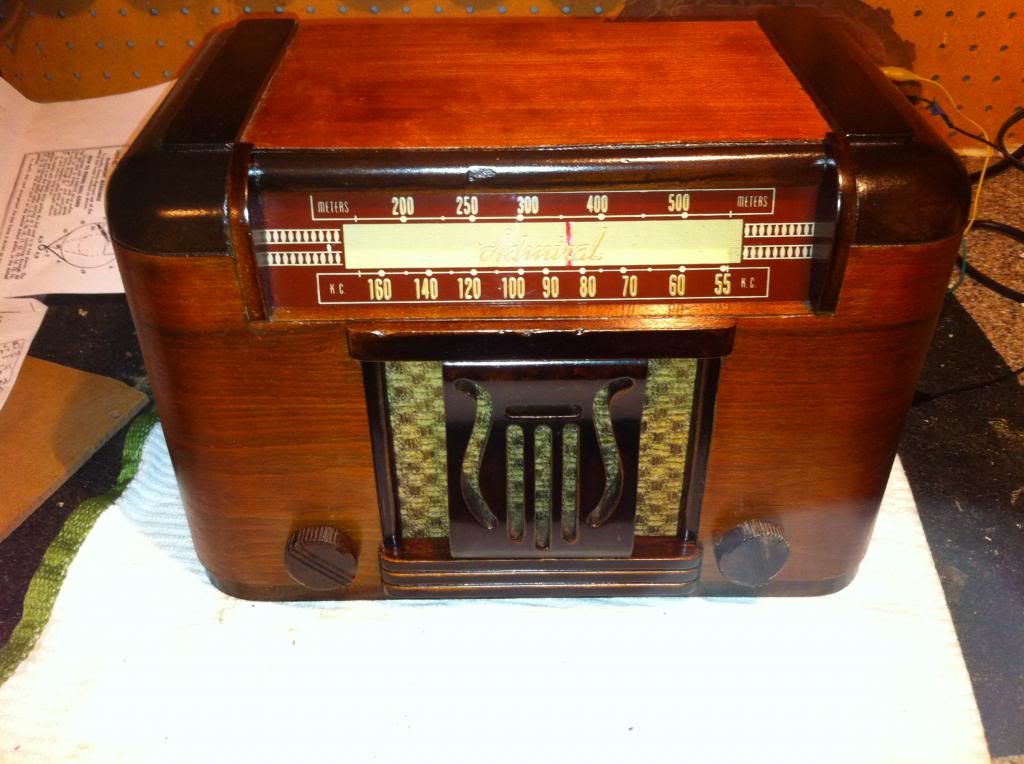

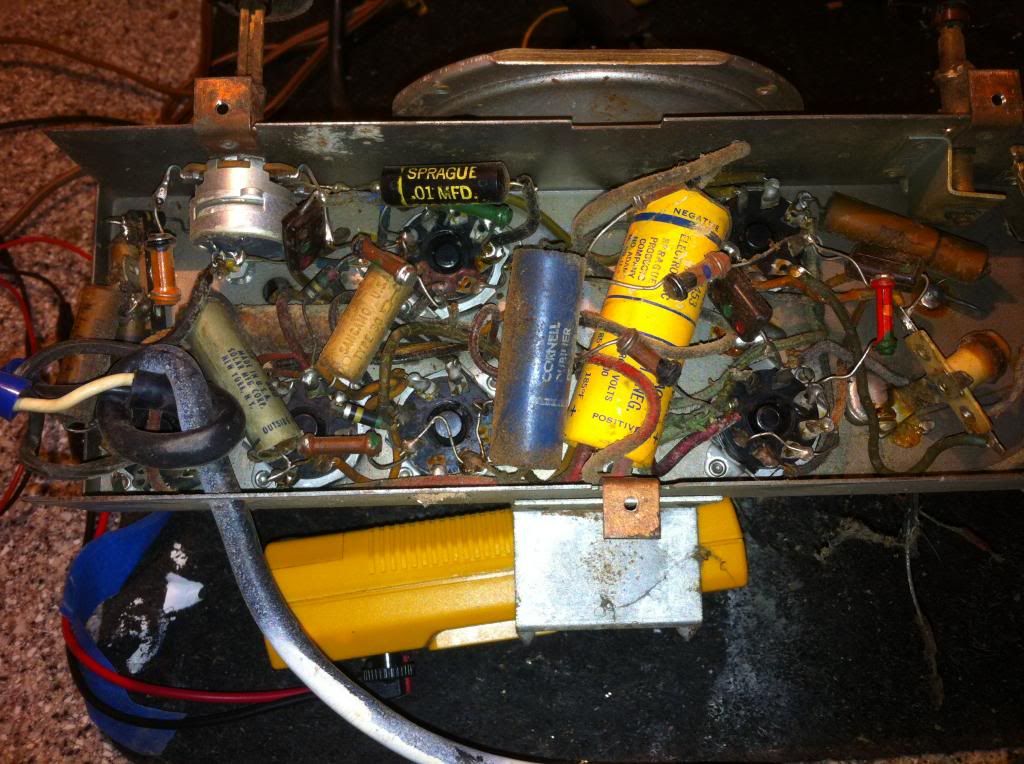

Anyone have an Admiral 4204 ch.B6. I have an unidentified non-electrical part.
http://tasha.eecs.umich.edu/Antiques/Radios/templ.php?pid=410&collection=Radios


Ben
http://tasha.eecs.umich.edu/Antiques/Radios/templ.php?pid=410&collection=Radios


Ben
Last edited by Ben Delk on Fri Jan 18, 2013 8:10 pm; edited 1 time in total (Reason for editing : add photos)
Ben Delk- Member
- Number of posts : 440
Age : 70
Registration date : 2012-04-03
Re: Admiral 4204 ch.B6
Very scarce set, and, very nice. I know alot of the beautiful wood grain is fake, but, still, a very nice radio.
Bill Cahill
Bill Cahill
_________________
Please also join us here; www.videokarma.org/index.php
Bill Cahill- Admin
- Number of posts : 4423
Age : 69
Registration date : 2008-03-12
Re: Admiral 4204 ch.B6

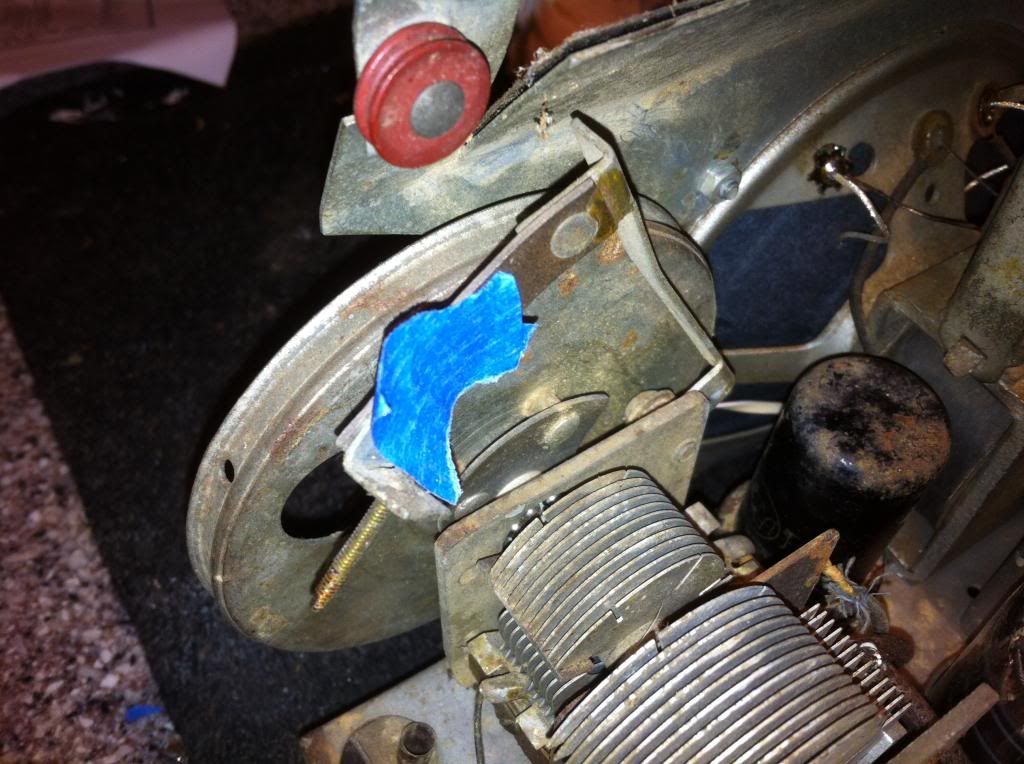

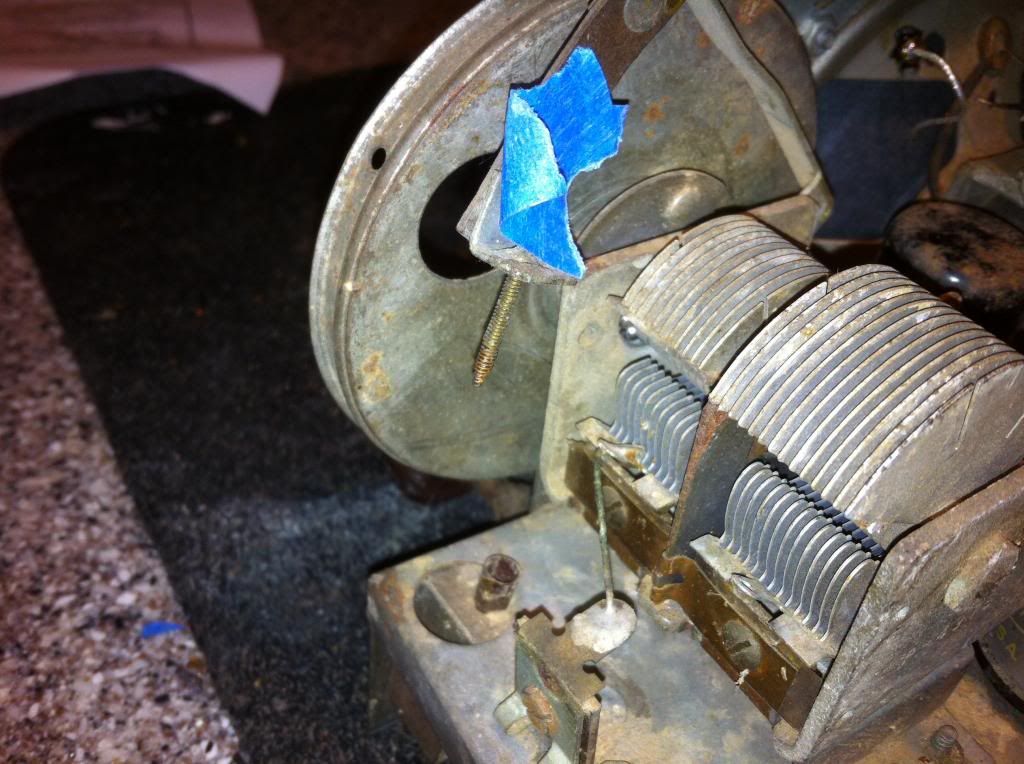

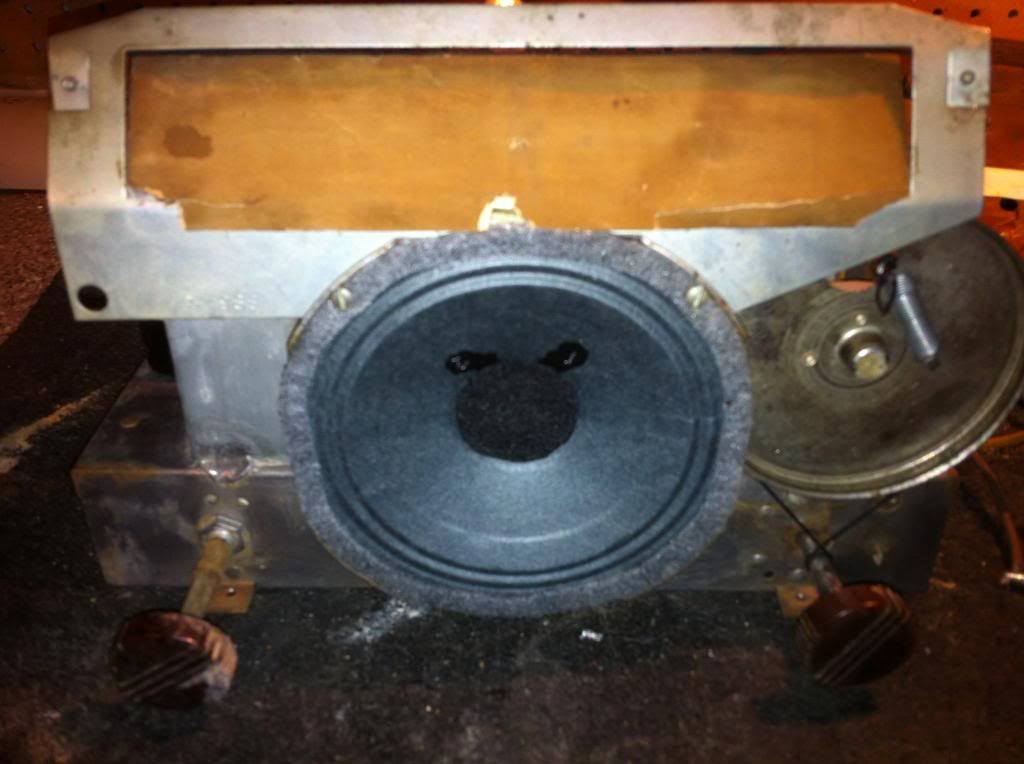

I recently purchased one, overall not too bad condition but the dial string and dial pointer are missing but that doesn't appear to be a huge problem. However there is a part directly behind the tuner wheel string wheel that pivots up and down that I have no idea what it is supposed to do. I thought I had the pictures of the part on my iphone but I don't so I'll need to post them later today.
Ben Delk- Member
- Number of posts : 440
Age : 70
Registration date : 2012-04-03
Re: Admiral 4204 ch.B6
Oooh, ooh (in my best Arnold Horshack voice)...
Found a tiny schematic (IPhone makes things interesting.)
Ben,

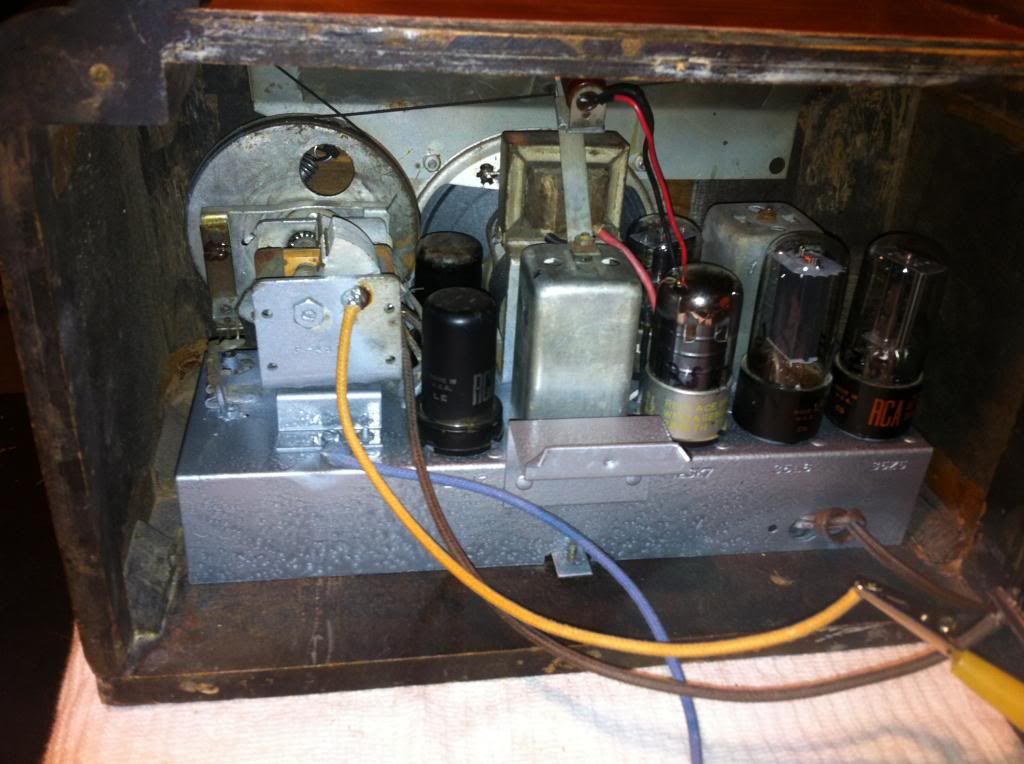

See that little straw looking tube? There should be an iron slug in it that raises up and down as you tune. It appears your radio has a tuned RF amp stage. Most manufacturers would simply install a tuning gang with 3 sections. Not your radio! As you tune, the cam causes what should be a spring loaded lever to rise and fall which in turn raises and lowers a ferrite core rod in and out of the tube (a coil) below.
They must have been looking to use up their supply of two gang variable capacitors. Thus the Rube Goldberg device.
I'm actually surprised...Zenith patented this idea in the 1940s for there Am/Fm radios. They used a cam attached to a regular tuning gang. The tuning gang did the AM tuning and the cam raised and lowered 2 ferrite rods for FM tuning and oscillation. The spring loaded action helped keep drift down and the ferrite tuning worked well at the higher frequencies. Now just who copied who? *cough cough* patent infringement....
Do I win a prize? LOL
Found a tiny schematic (IPhone makes things interesting.)
Ben,
See that little straw looking tube? There should be an iron slug in it that raises up and down as you tune. It appears your radio has a tuned RF amp stage. Most manufacturers would simply install a tuning gang with 3 sections. Not your radio! As you tune, the cam causes what should be a spring loaded lever to rise and fall which in turn raises and lowers a ferrite core rod in and out of the tube (a coil) below.
They must have been looking to use up their supply of two gang variable capacitors. Thus the Rube Goldberg device.
I'm actually surprised...Zenith patented this idea in the 1940s for there Am/Fm radios. They used a cam attached to a regular tuning gang. The tuning gang did the AM tuning and the cam raised and lowered 2 ferrite rods for FM tuning and oscillation. The spring loaded action helped keep drift down and the ferrite tuning worked well at the higher frequencies. Now just who copied who? *cough cough* patent infringement....
Do I win a prize? LOL

Dr. Radio- Member
- Number of posts : 899
Age : 40
Registration date : 2012-09-17
Re: Admiral 4204 ch.B6
The winner is .....the man with the Arnold Horshack voice.

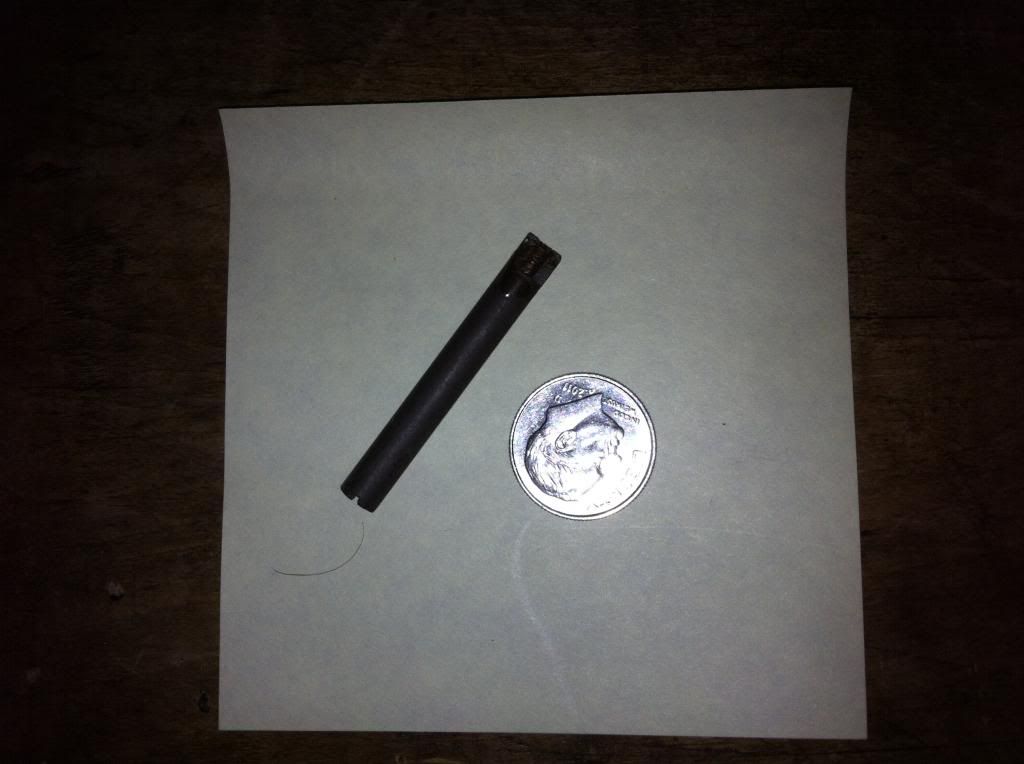

I found this little rod in the bottom of the case when I disassembled it. I had sneaking suspicion it had something to do with my unidentified part. This is one of those times when a picture would be worth a million $$ and all the parts priceless. Anyone have one of these radios of one built like it where I can get a picture?
Thanks DOC!!!!

I found this little rod in the bottom of the case when I disassembled it. I had sneaking suspicion it had something to do with my unidentified part. This is one of those times when a picture would be worth a million $$ and all the parts priceless. Anyone have one of these radios of one built like it where I can get a picture?
Thanks DOC!!!!

Ben Delk- Member
- Number of posts : 440
Age : 70
Registration date : 2012-04-03
Re: Admiral 4204 ch.B6

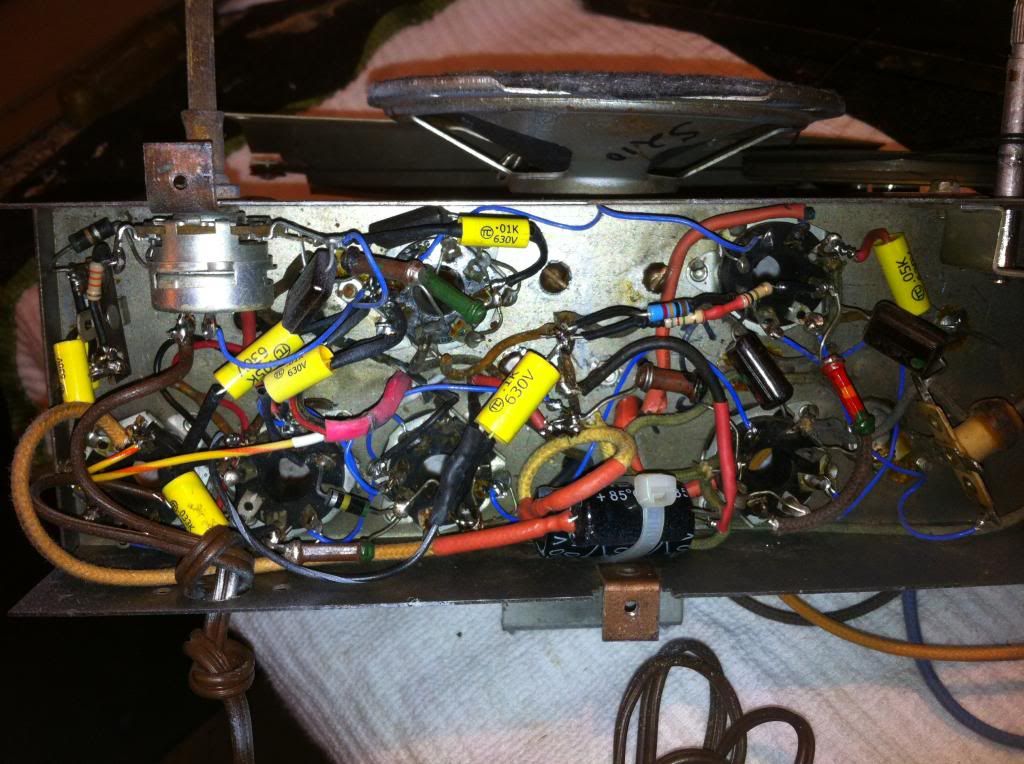

Well I managed to get the ferrite rod reconnected to the screw now I need to figure how the spring that keeps tension on this mechanism is suppose to do that. It is attached but just flops around. I finally found a spring for the dial string and got it on but need to make a dial pointer. Funny... the recap and wiring has been the easy part on this radio. Finding or making missing parts is always time consuming and a pain in ***.
Ben Delk- Member
- Number of posts : 440
Age : 70
Registration date : 2012-04-03
Re: Admiral 4204 ch.B6
Admiral 4204 ch. B6 is complete
