Post by stringbender31 on Sun Nov 25, 2012 5:25 pm

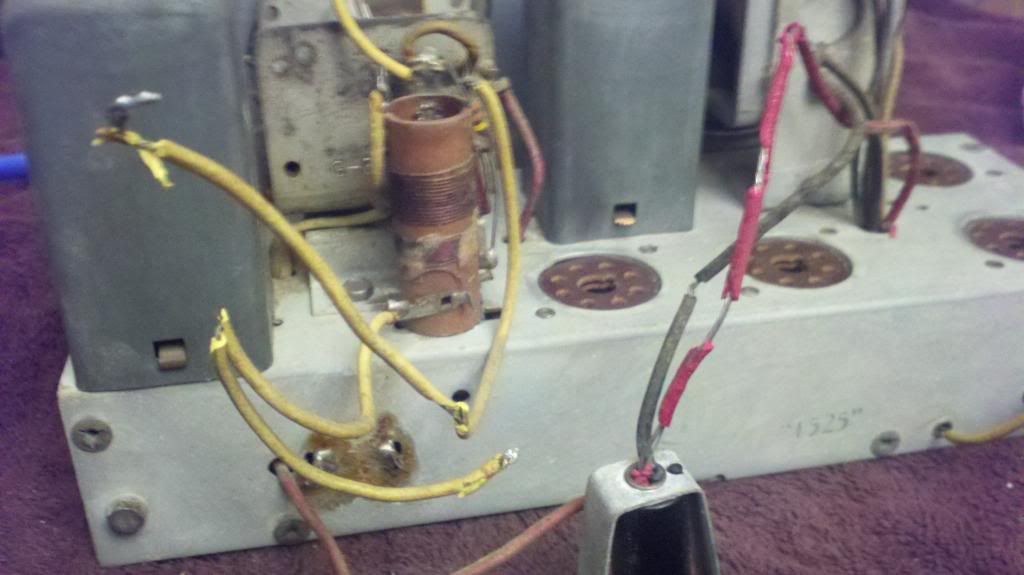

I picked up a decent-looking 56TC a few months ago that was D.O.A in hopes I could learn a few things & get it playing again. I think it must have sat in an attic or closet for a very long time because most of the wiring was rotted and fell apart when i moved it. (And it had a lot of dust in it.)

Back from the dead: 1946 Crosley 56TC (with pics) 2012-06-30_16-27-08_597

Back from the dead: 1946 Crosley 56TC (with pics) 2012-06-30_16-26-52_627

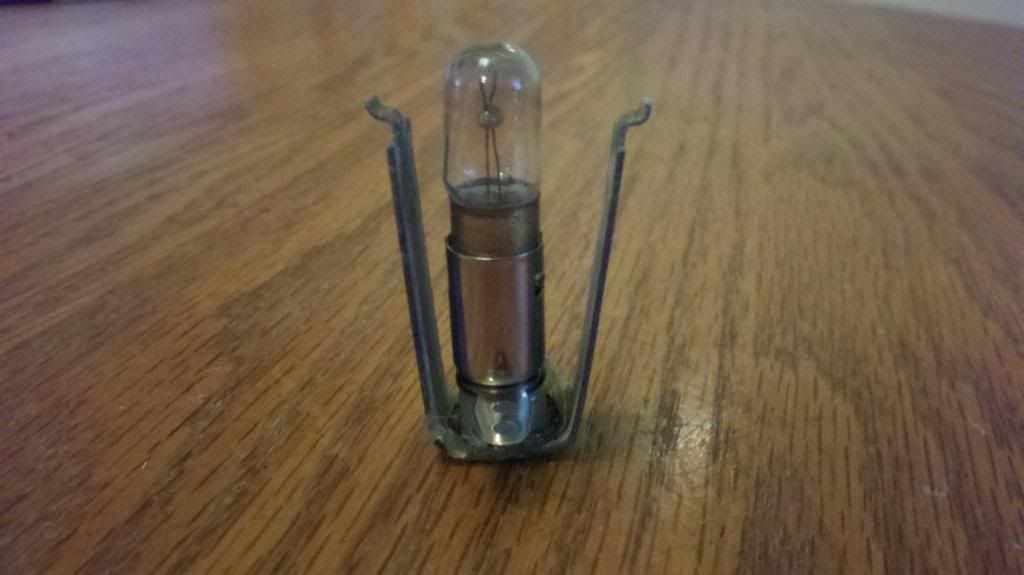

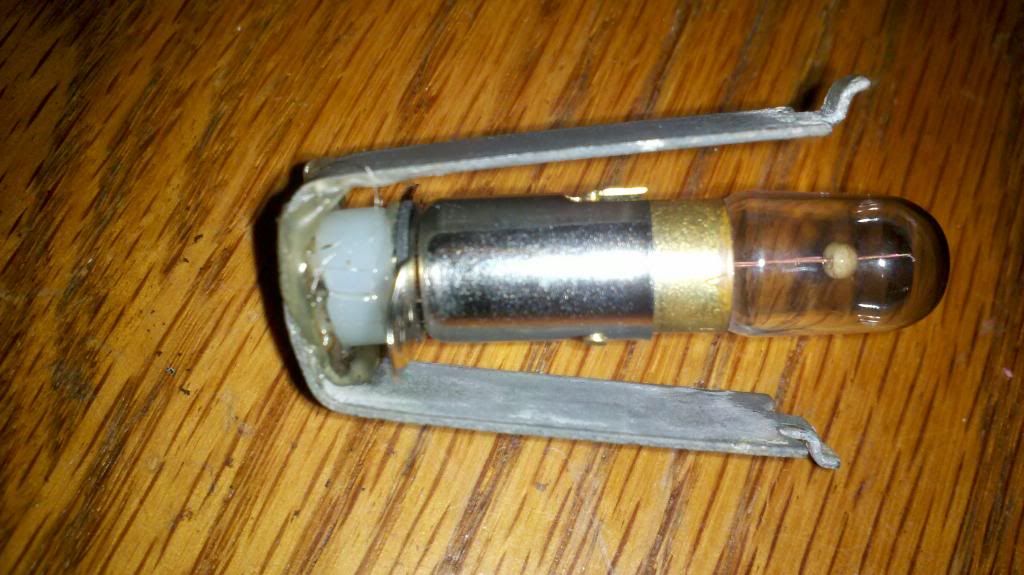

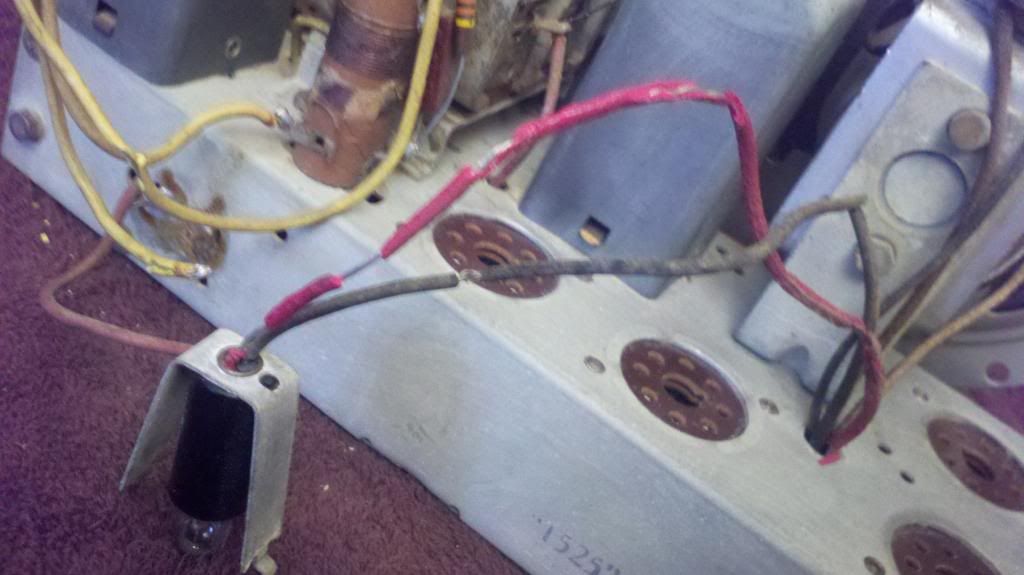

I had to fabricate a new dial lamp holder since the the wiring on the original was trashed.

Back from the dead: 1946 Crosley 56TC (with pics) 2012-07-01_13-51-40_117
Back from the dead: 1946 Crosley 56TC (with pics) 2012-07-01_13-51-17_755


The wiring wasn't the only thing brittle on this radio, one of the lugs on the rectifier socket broke off when I touched it with the soldering gun, so the socket got replaced too.

Back from the dead: 1946 Crosley 56TC (with pics) 2012-08-26_21-46-03_461


So, I replaced the rotted stuff, recapped it, changed some out-of-spec resistors & power it up for the 1st time in who knows how long.
I brought it up on the dim-bulb, the tubes and dial lamp lit up but no sound. Checked voltages and found I had no B+, which I learned was caused by a bad field coil. (Which also made the speaker useless) I replaced it with a power resistor and permanent magnet speaker.

Back from the dead: 1946 Crosley 56TC (with pics) 2012-11-23_23-18-15_823

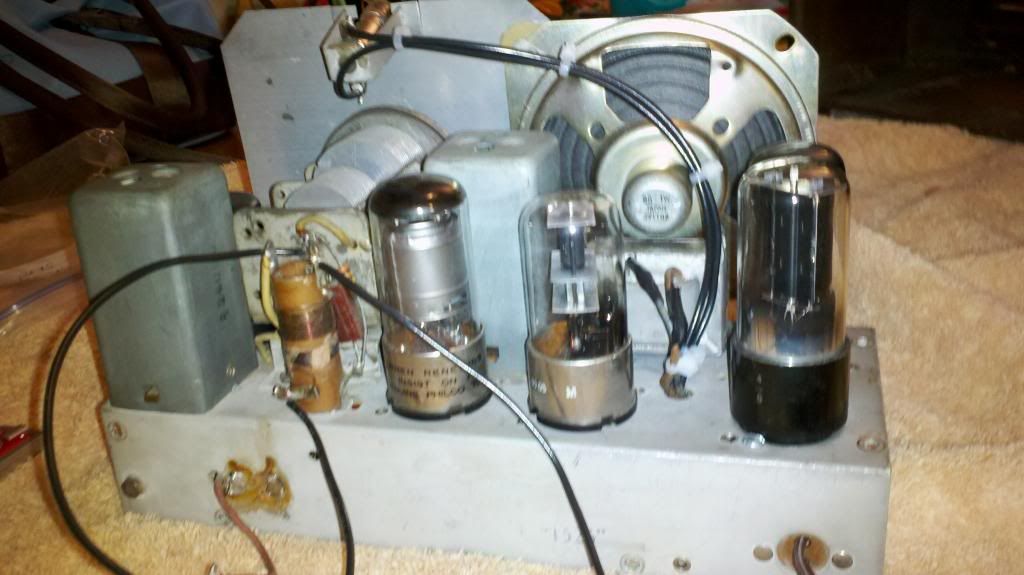

Fired it up again & to my surprise, still got nothing. After a lot of trouble shooting, signal injection, signal tracing, rechecking my work and a bunch of head-scratching, I pin-pointed it down to this little trouble maker here:

Back from the dead: 1946 Crosley 56TC (with pics) 2012-11-23_23-09-08_772

I didn't bother with this when I recapped it because I was always told that these rarely go bad & no need to change them. I learned that "rarely" does not mean "never" lol!

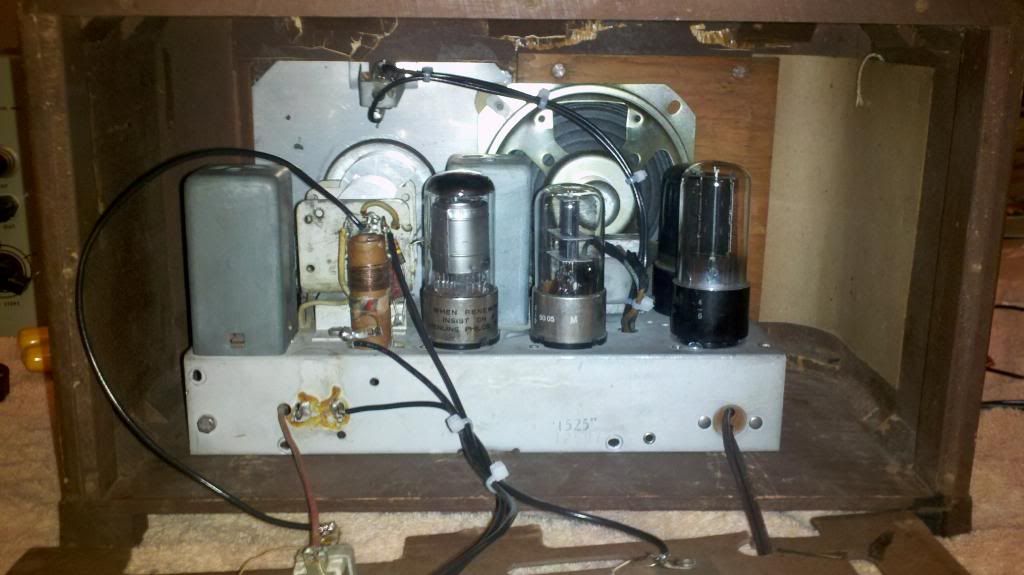

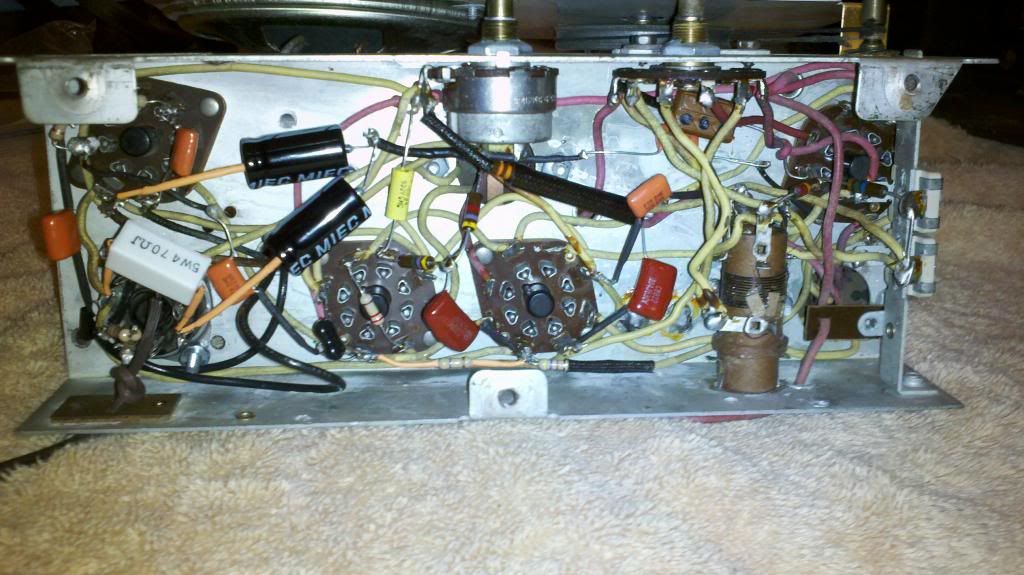

Here is the underside all finished

Back from the dead: 1946 Crosley 56TC (with pics) 2012-11-23_23-13-51_456

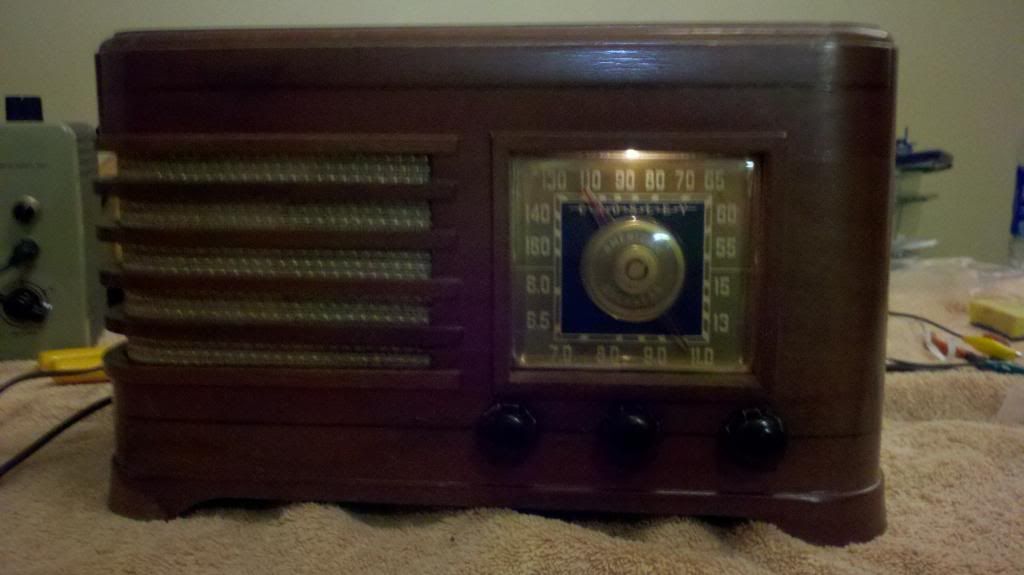

I'm happy to say it is now playing and sounds fantastic! I aligned it & let it play for over an hour with no issues whatsoever. It pulls in lots of stations with loud, clear volume.

Back from the dead: 1946 Crosley 56TC (with pics) 2012-11-24_22-06-37_763
Back from the dead: 1946 Crosley 56TC (with pics) 2012-11-24_21-57-48_16

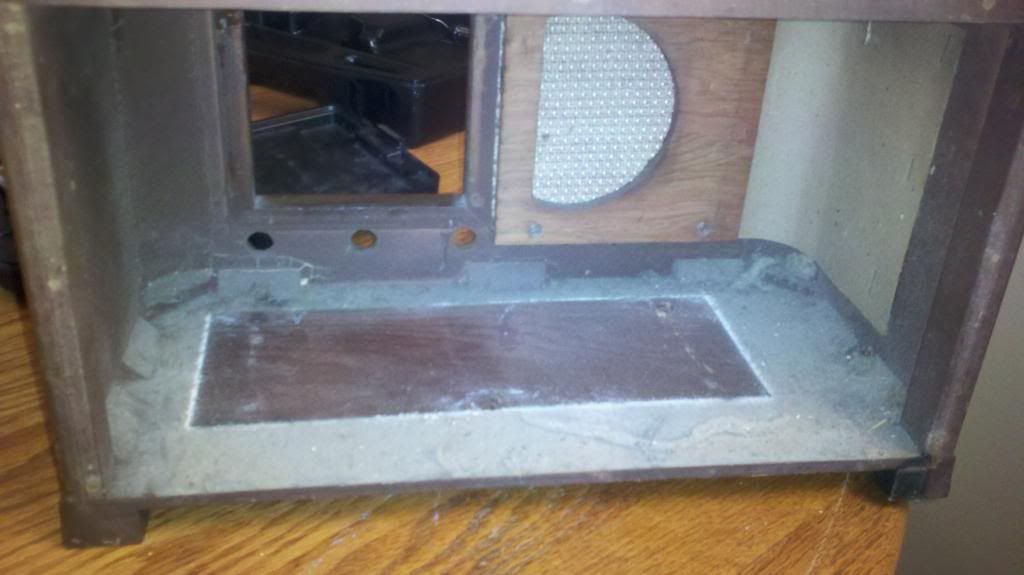

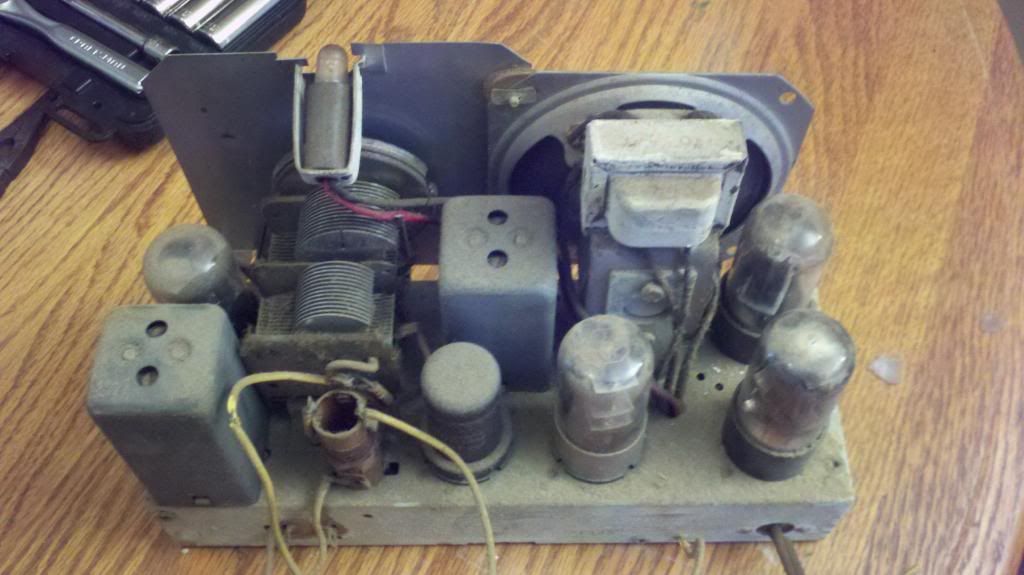

Here's a couple shots to show how much dust was inside when i first opened it up. Needless to say, both the cabinet and chassis got a thorough cleaning!

Back from the dead: 1946 Crosley 56TC (with pics) 2012-06-29_19-38-31_443
Back from the dead: 1946 Crosley 56TC (with pics) 2012-06-29_19-43-05_931


I learned a lot with this radio & I'm very happy how it turned out (even though I'll admit I wanted to throw it out the window a few times Mad )

Hope u guys enjoyed it! Sorry about the blurry pictures
