1937 Approx. Emerson Bakelite Mystery table radio

Go down

1937 Approx. Emerson Bakelite Mystery table radio Empty 1937 Approx. Emerson Bakelite Mystery table radio

Post by Bill Cahill on Tue Jul 19, 2011 6:26 pm

Hi, Guys!
I have another old project here. I have started work on case, and, it needs major electrical work. I con't have a model, or, chassis number. Can anyone help me?
It's this neat Emerson bakelite table radio. Tube line up inclues 43, 25Z5, 6C6, 6D6, and, an octal based ballast tube plugged in. Has a single dial light. I can't find a schematic in NA. Can anyone help?
Pics. follow:

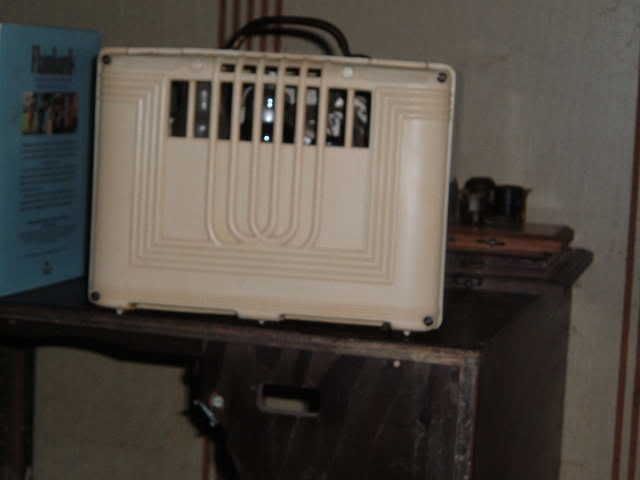

1937 Approx. Emerson Bakelite Mystery table radio EmersonBakeliteMysterytableradio-3

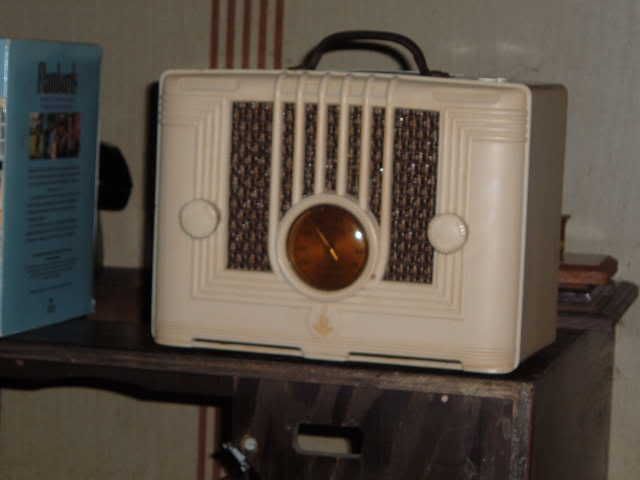

1937 Approx. Emerson Bakelite Mystery table radio EmersonBakeliteMysterytableradio

Many thanks. Smile
Bill Cahill

_________________
Please also join us here; www.videokarma.org/index.php
Bill Cahill
Bill Cahill
Admin
Admin

Number of posts : 4419
Age : 69
Registration date : 2008-03-12

Back to top Go down

1937 Approx. Emerson Bakelite Mystery table radio Empty Re: 1937 Approx. Emerson Bakelite Mystery table radio

Post by Doug Burskey on Sun Jul 31, 2011 2:19 pm

I had one of them,but it was brown I never knew what the back looked like,the one I had was missing. Not shure if that handle is orignal. Emerson did not do a good job of model numbering some of there sets. Mid late 30's vintage TRF circut.

Doug Burskey
Member
Member

Number of posts : 221
Age : 61
Registration date : 2011-06-22

Back to top Go down

1937 Approx. Emerson Bakelite Mystery table radio Empty Re: 1937 Approx. Emerson Bakelite Mystery table radio

Post by Doug Burskey on Sun Jul 31, 2011 2:51 pm

After some reserch that set is a BA-199 or a BA-201.Schematic cam be found in Riders Vol.9 Emerson page 31. The schematic in Riders has a 25L6 tube for a type 43.

Doug Burskey
Member
Member

Number of posts : 221
Age : 61
Registration date : 2011-06-22

Back to top Go down
