Beginners questions... subs for missing/damaged parts

Post by lrom on Wed Jan 06, 2010 1:13 pm

I hope this question fits the new category. I am a beginner with a gutted AM "farm radio" Nipperette made by RCA. It uses the following four tubes: 1a7, 1n5, 1h5, 1t5. I have found a schematic for a Northern Electric Baby Champ B4000 which uses a similar tube set. This set was water damaged at some point, with some ash residue inside the cabinet so I assume it may have been exposed to fire.

There are a few components that will need to be replaced due to physical damage. Most of you would junk the set but it's the only one I've got so I will use this for a first experiment despite the flawed logic in attempting repair. Let me apologize in advance for how basic these questions must sound to you all, I can build and program a PC but I have no real idea what to do with an old radio (yet). Can anyone help with advice or resources on how to get replacements for the following:

1 - Tuning capacitor - it is dual gang, I assume 365pf for tuning and the other section for the oscillator. I was told 365pf/170pf on another forum was "standard" but I can't seem to find this value yet. I'd like to use the original tuning dial glass and markings, so I assume I need to be close but is there a little wiggle room when subbing these? Problem is serious corrosion, shaft no longer turns. I'll attempt to salvage it with cleaning if it cannot be subbed easily.

2 - 1st & 2nd IF cans - I have no idea how to substitute these, or even what the values are. Is there standard values to these components, or some way to determine based on the circuit? Coils appear to be open. IF frequency most likely 455 khz.

3 - Antenna and Ocillator coils - I have found "universal" replacements from Antique Electronic supply are available, again the originals are badly damaged. Will a universal sub work in most applications?

4 - Speaker - less than 1/2 watt with an impedance matching transformer suitable for the 1t5? I'm assuming I can use anything that will fit. Unfortuneately the original is completely missing.

Capacitors, resistors and tube sockets won't be a problem as they seem to be widely available. I'll build a 90v power supply for the radio, and I'm not going to worry about the cosmetic stuff until I hear some sound. I will also have what I think is the correct schematic shortly if it will help. Any clues & hints are appreciated.

best regards,

Lee / lrom study

lrom
New Member
New Member

Number of posts : 4
Registration date : 2010-01-05

Back to top Go down

Re: Beginners questions... subs for missing/damaged parts

Post by Bill Cahill on Wed Jan 06, 2010 2:30 pm

The transformer on the speaker isn't a n impedence matching transformer. It's the output transformer. Are you sure it, and, spkr. are bad?
Are you sure coils, if's, and, tuner are bad?
Usually, if's, and, coils don't go bad.
Tha "ash" you talk about is likely battery acid that leaked.
If the tuner is coroded, it can usually be cleaned, and, made usable again.
May we see some pictures of this set?

You shouldn't need to replace the tube sockets either.
Bill Cahill
I guess this all depends on how bad the dammage is.
Pictures would definately help.

_________________
Please also join us here;  http://videokarma.org/index.php
avatar
Bill Cahill
Admin
Admin

Number of posts : 4530
Age : 66
Registration date : 2008-03-12

Back to top Go down

Re: Beginners questions... subs for missing/damaged parts

Post by lrom on Thu Jan 07, 2010 6:18 pm

Hi Bill,

Thanks for the reply. I'll see if I can get a picture taken of the chassis on the weekend. It's not unusual but it sure is ugly. Very Happy

Speaker and xformer are entirely missing so a sub will be a necessity. The coils mentioned are all physically damaged (broken, torn wires, etc) with the possible exception of 1st IF, which was protected a little bit by the metal can.

Bye for now

lrom
New Member
New Member

Number of posts : 4
Registration date : 2010-01-05

Back to top Go down

Re: Beginners questions... subs for missing/damaged parts

Post by sprman on Sat Jan 09, 2010 11:05 pm

Hi for the tuning cap try spraying it with Kroil to free it up.Once you have it free you need to clean it very very good with electronics parts cleaner.Cleaning up any acid will be a messy job baking soda and a bit of water mixed will clean that acid up.Then you need to clean up the mess.Sounds like you got your hands full there good luck with it.Sprman Cool Smile

sprman
Member
Member

Number of posts : 365
Age : 62
Registration date : 2008-03-27

Back to top Go down

Pictures of the subject

Post by lrom on Sun Jan 10, 2010 5:45 pm

I disassembled and did some basic cleaning to get some pictures.

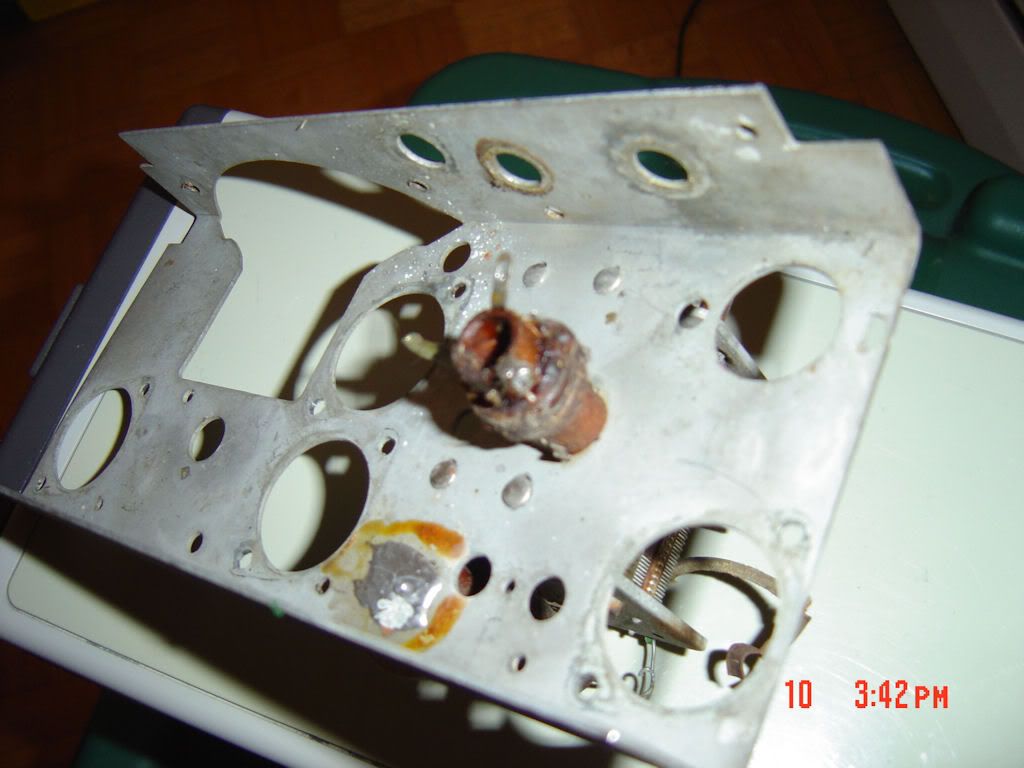

view of osc coil:

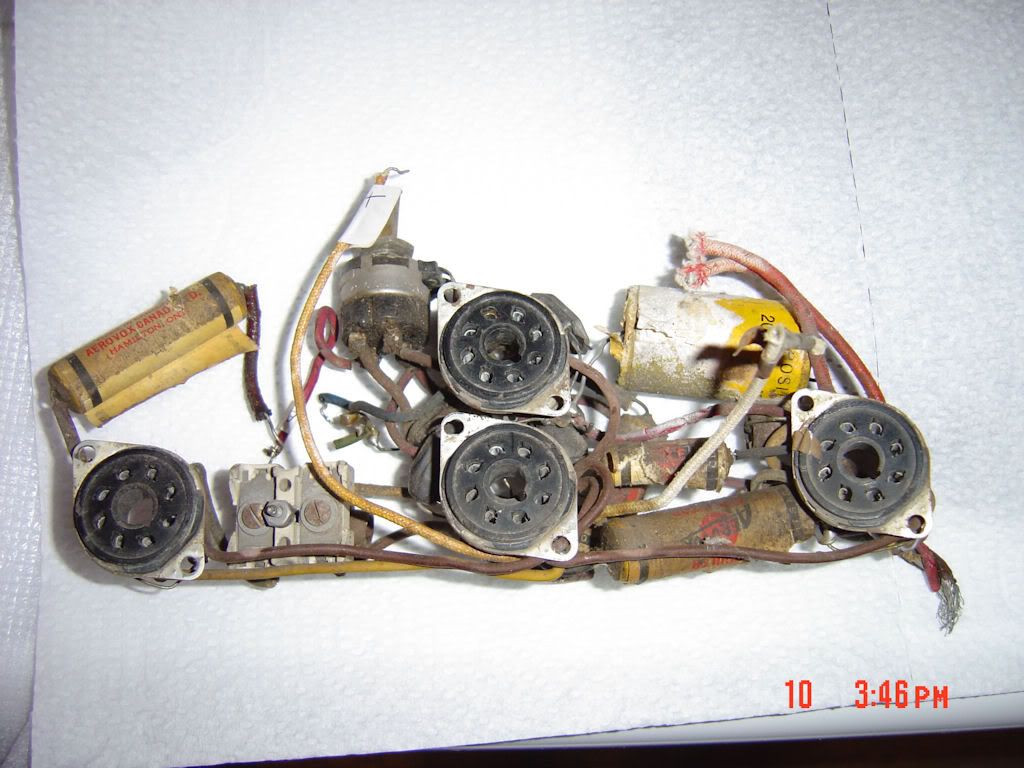

view of guts top:


view of guts bottom:

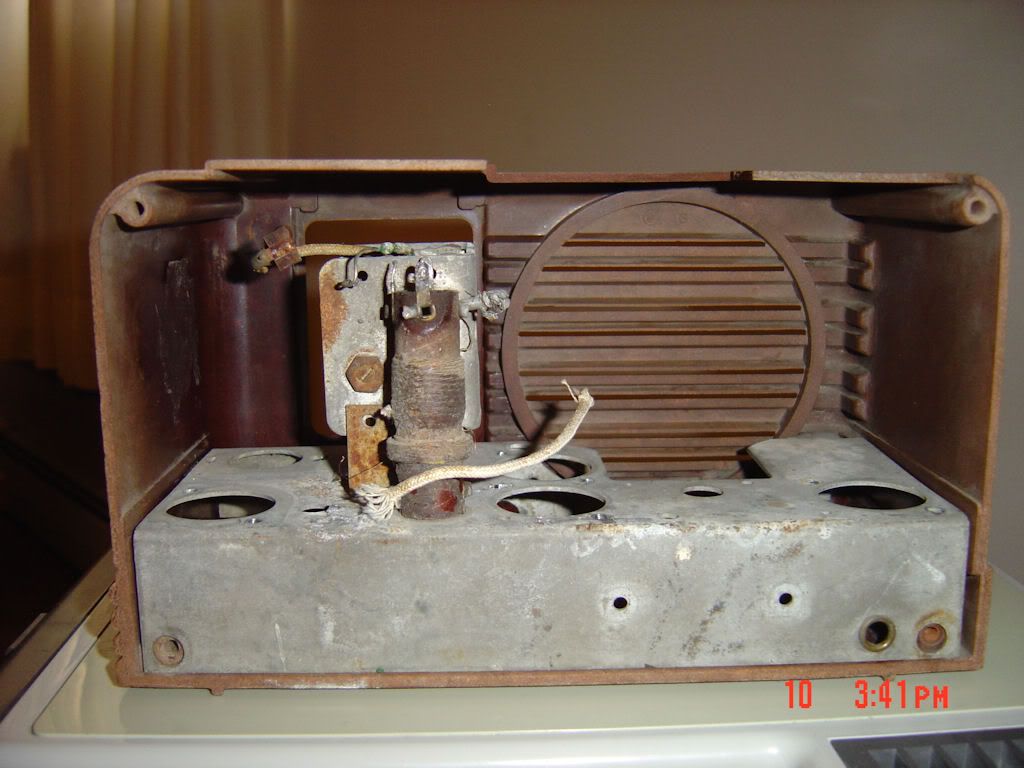

view of cabinet rear, chassis straightened out and reinstalled:

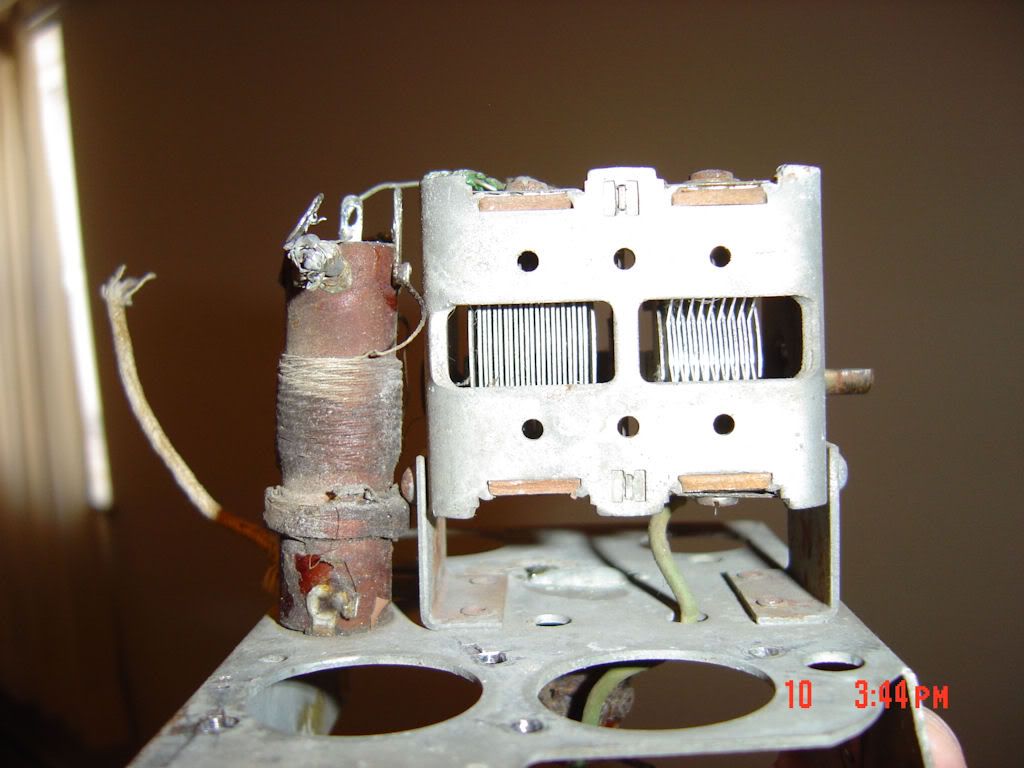

view of ant coil and tuner:

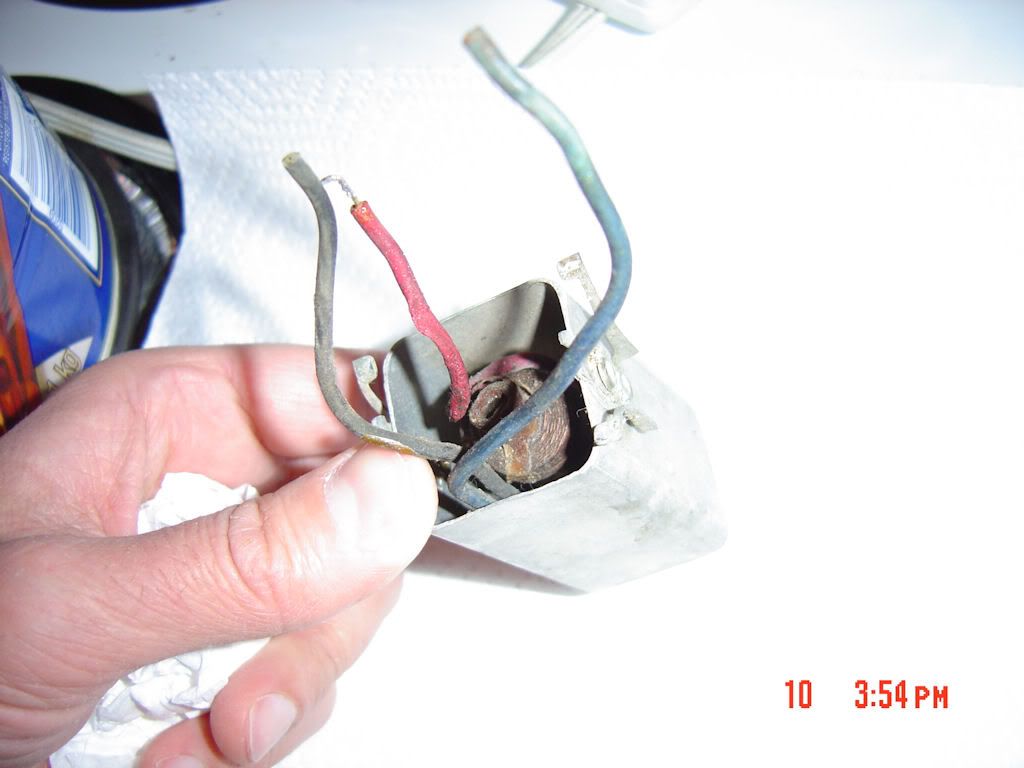

view of 1st if coil removed - dirty, may be ok:
