Champion Radio Tube 250R

Post by shunkpenn on Wed Oct 19, 2016 11:12 pm

Help me. I have a new in box Champion 250R radio tube...I think from the 20's or 30's...that I cannot find any information on....Hoping somebody can shed some light on the tube. Thanks for the help.

shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by Guest on Thu Oct 20, 2016 12:51 am


Guest
Guest


Back to top Go down

Re: Champion Radio Tube 250R

Post by shunkpenn on Thu Oct 20, 2016 2:01 pm

I took a look at the link.  The tube does not match up with mine.  I can provide a link with some pics in a few days.

shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by shunkpenn on Thu Oct 20, 2016 2:07 pm

Trying to post an image. I will see if it works. Thanks.


shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by Bill Cahill on Fri Oct 21, 2016 10:09 pm

Hi, and, welcome to TRF. Theg guys here can help you how to upload photos.
Just ask. Tony V, Mezlaw, Or, any of the moderators will be glad to help you.

Bill Cahill

_________________
Please also join us here;  http://videokarma.org/index.php
avatar
Bill Cahill
Admin
Admin

Number of posts : 4538
Age : 66
Registration date : 2008-03-12

Back to top Go down

Re: Champion Radio Tube 250R

Post by shunkpenn on Thu Oct 27, 2016 8:26 pm

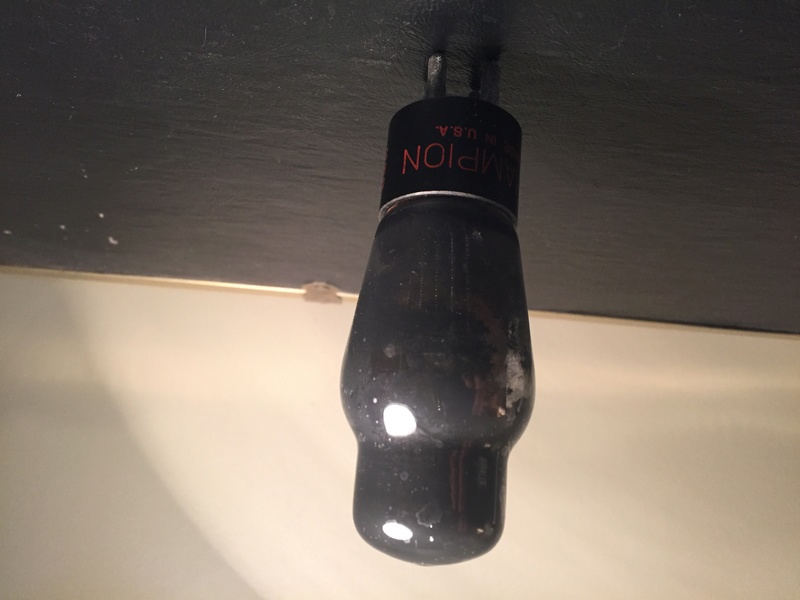

Pics for your review



shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by John Bartley on Thu Oct 27, 2016 9:03 pm

I think maybe you have a 50 tube (like other tubes, they might have a 1, 2, or 3 preceding the tube number). I rhink it's a fairly rare tube? Others will know better. Here's a data sheet :


John Bartley
Member
Member

Number of posts : 143
Registration date : 2013-04-21

Back to top Go down

Re: Champion Radio Tube 250R

Post by Guest on Thu Oct 27, 2016 9:46 pm

That tube is not a 250R, what other numbers are on the tube?

Can you see any faint number on the glass?

Guest
Guest


Back to top Go down

Re: Champion Radio Tube 250R

Post by John Bartley on Thu Oct 27, 2016 10:09 pm

I don't have schematics for these, but these Kadette model shown below use a 250R tube, which I suspect is actually a #50 tube.

I think MEZLAW is on the right track ... what # is on the tube?

Image comes from this link : http://www.americanradiohistory.com/Archive-Radio-Retailing/30s/Radio-Retailing-1937-07.pdf


John Bartley
Member
Member

Number of posts : 143
Registration date : 2013-04-21

Back to top Go down

Re: Champion Radio Tube 250R

Post by shunkpenn on Thu Oct 27, 2016 11:36 pm

The box was sealed when purchased. Here are some more pics. Thanks for the help.



shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by John Bartley on Fri Oct 28, 2016 8:56 am

So I was able to get a schematic for the Kadette K1159 from Radiomuseum.org The 250R appears to be a ballast tube, NOT a 50 tube as I guessed at earlier. The Kadette K1159 is an eleven tube, series string heater type, without any power transformer and with two ballasts and a regulator tube making up three of the eleven tubes.

John Bartley
Member
Member

Number of posts : 143
Registration date : 2013-04-21

Back to top Go down

Re: Champion Radio Tube 250R

Post by shunkpenn on Fri Oct 28, 2016 12:58 pm

John

What is the difference between the model type presented here:

http://www.radiomuseum.org/tubes/tube_250r.html

shunkpenn
Member
Member

Number of posts : 21
Registration date : 2016-10-18

Back to top Go down

Re: Champion Radio Tube 250R

Post by John Bartley on Fri Oct 28, 2016 1:19 pm


John Bartley
Member
Member

Number of posts : 143
Registration date : 2013-04-21
