DX-300 from eBay

Post by LarryC on Sun Jul 03, 2016 4:02 pm

Won this recently on eBay......... hope the picture uploads
First try Negative Evil or Very Mad

2nd try  SUCCESS!!!!!!!!!!!!!!!! Twisted Evil



As received it was dirty and the pre-selector was not working. Easy clean of the case, but more to go, you can still see
some dirt in the speaker area. Also the lamps behind the pre-selector were burned out.
I've picked a number of these and the 302 version and everyone has had a problem or two, but that's due to age.
I think this receiver may be maligned a lot mostly due to user inexperience in using a Wadley loop design.
Also from reading other users accounts it may be a bit finicky on how the antenna is set up, this one seems to
need a really good ground system to get best performance. I will be checking this out.
avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

DX-302 pics

Post by LarryC on Sun Jul 03, 2016 5:13 pm

top and bottom with the case off



avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

Preselector Repair

Post by LarryC on Sun Jul 03, 2016 5:21 pm

As I said the pre-selector was not turning at all so I took it a part.

Here it is on the chassis back view with the small air variable capacitor:



Mounting screws removed and the unit moved out to work on it:



The lower white nylon gear assembly is the problem child here as the old oil/grease has hardened up over time. To get to it
you need to remove the nut around the shaft and then take out 4 screws, 2 on each side, then remove the support bracket:



Fortunately the other nylon gears do not have any oil or grease on them and you don't need to worry about them.
The threaded portion around the tuning shaft of the pre-selector does contain a ball bearing and you should apply a little motor oil
to it and make sure it turns easily. The lower nylon gear assembly is held in by only one screw and easily taken out:

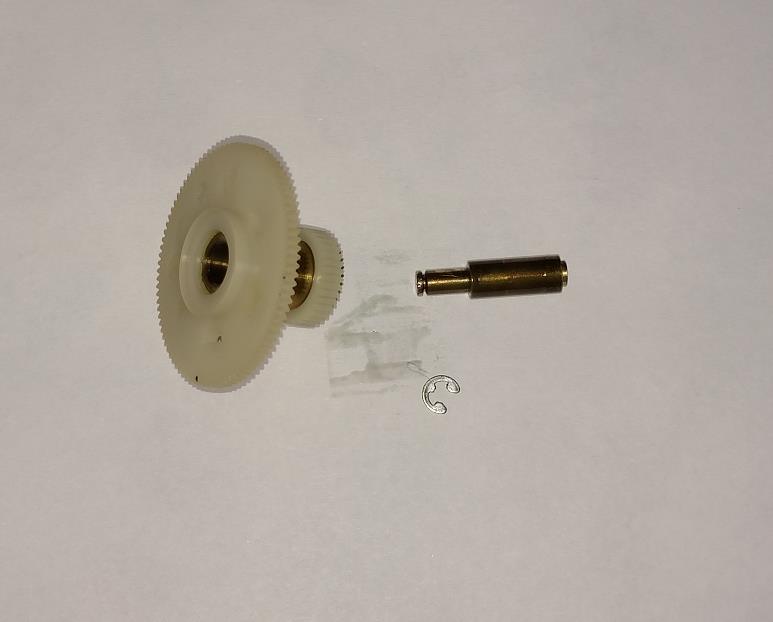

The lower nylon gear assembly has a small lock ring that comes off and then you can remove the central shaft to clean it out of the
old oil and grease:



Clean off the old oil and grease then apply some fresh motor oil and re-assemble.
Also while your at it, don't forget to apply a little oil to the bearings on the variable capacitor.
To re-assemble, the capacitor should have all the plates fully un-meshed (minimum capacitance) and the rolling frequency chart should be
aligned so the word SET will be at the same level as the white line on the front panel window for the pre-selector.
avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

Re: DX-300 from eBay

Post by 75X11 on Sun Jul 03, 2016 7:19 pm

Looks like a well built unit. Great Pictures too! I hope to get a good ground set up this summer.
avatar
75X11
Member
Member

Number of posts : 4900
Age : 61
Registration date : 2013-03-10

Back to top Go down

Re: DX-300 from eBay

Post by LarryC on Sun Jul 03, 2016 8:23 pm

Thanks,
I'll be doing a section here devoted to the DX-300/302 and the problems I find and repairs
avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

Re: DX-300 from eBay

Post by Wildcat445 on Sun Jul 03, 2016 8:44 pm

Good luck.

Wildcat445
Member
Member

Number of posts : 5168
Registration date : 2011-09-19

Back to top Go down

Re: DX-300 from eBay

Post by Wildcat445 on Tue Jul 05, 2016 2:36 pm

My suggestion would be to include a blurb on troubleshooting solid state equipment. I'll bet there are members on here who know little or nothing of how to do that, and would find such instruction useful and interesting.

Wildcat445
Member
Member

Number of posts : 5168
Registration date : 2011-09-19

Back to top Go down

eBay units usually don't work

Post by LarryC on Tue Aug 30, 2016 11:35 pm

As the title says:
most of the DX-300/302 receivers you buy on eBay do not work.
Usually the seller will put in a little blurb like:
"It powers up"....what does this mean?? not very specific
" All the knobs seems to function" or " It lights up".... again not very descriptive concerning over all functionality.
" I don't know how to operate or test this"....AH HA!!!! in other words I truly don't know anything about this radio or it's broken/not operational and I don't want to say that in the eBay description because it will keep the price down.

These receivers were made back in the 1980's as a response to the Yaesu FRG-7 receiver, they both use the same Wadley loop circuit but the DX-300/302 also feature direct led Frequency readout. The Yaesu just has an analog dial scale.
On several of the units I am working on, all suffer from a number of issues.
The pre-selector sections do not turn due to old lubricants that have dried out / hardened with age and need to be cleaned and re-lubricated as per previous post.
There is a small nylon gear that is prone to splitting due to age of the gear and shrinkage of the nylon plastic but, also I think in large part due to the old lubricants on the gear trains and tuning capacitors
having dried out or hardened and placing additional stress on the gear as you try to tune the receiver outter mhz dial.
The RF front end dual gate mosfet stage Q201 (3SK45) is prone to being damaged by static or nearby lightning strikes, I know as I had one DX-300 suddenly lose sensitivity to local stations during a thunderstorm here. There is diode protection but only if your using the coax connector. If your antenna is just hooked up to the terminal strip antenna connection, there is no diode protection. So this unit and two others ( from eBay purchases ) so far have had to have Q201 replaced to get them functional once more. I believe this is a very common problem.
A good ground is necessary to get best performance as well as cut down noise into the receiver.
All of the DC electrolytic capacitors are now more than 30 years old and need to be replaced.
avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

Re: DX-300 from eBay

Post by 75X11 on Wed Aug 31, 2016 12:19 am

Good luck with them.  It looks as though they like plenty of attention too. Smile
avatar
75X11
Member
Member

Number of posts : 4900
Age : 61
Registration date : 2013-03-10

Back to top Go down

Re: DX-300 from eBay

Post by Bill Cahill on Wed Aug 31, 2016 9:33 am

Nice looking unit. Good luck on it.

_________________
Please also join us here;  http://videokarma.org/index.php
avatar
Bill Cahill
Admin
Admin

Number of posts : 4528
Age : 66
Registration date : 2008-03-12

Back to top Go down

Nylon gear issues

Post by LarryC on Sat Sep 03, 2016 5:22 pm

The next installment in this series concerns the nylon gears in the tuning section.
Over time the nylon material shrinks and the old oil and grease gums up placing additional stress
on the gears resulting in cracking.
First picture shows the tuning gear train and the 3 suspect gears that I have seen crack so far:



Number 3 is behind that metal partition below where you cannot see it but it is about the same size as the others.
Number 1 is the most common one to crack and it a semi tight fit on the shaft as it is supposed to be able to turn a bit when you max out the
megahertz selector dial.
Gears 2 and 3 are press fit tight on their shafts and should not turn at all.

A couple pictures of the actual split gears now:





you can clearly see the splits. An indication that your radio has split gears is that as you try to tune the radio you feel
an un-eveness in the tuning and it seems to hang up or be forced to tune past a certain point in the full tuning range,
or a bumpy feeling while tuning at one spot per revolution of the tuning or mhz knob.

It is possible to repair these cracked gears.
I use sand paper, super glue, and a good epoxy ( one made for bonding plastic is good, but regular epoxy should work as well ).
Getting the gears out is a bit of a chore with a number of screws removed and the leads going to the main tuning capacitor having to be carefully un-soldered
and there's not a lot of room for doing it, but it can be done.
After the gear is cleaned, I use a small crescent wrench as a vice to clamp the gear slit closed after putting a drop of super glue on the split area:



After the super glue sets, I then sand the area around the closed split and
put a small fillet of epoxy over the split area and off to each side:



Now that your gear or gears are repaired you cannot just go and push them back onto their shafts as this will undo all of your work up to this point
and cause the gear to split once again.
On gears 2 and 3, I use sand paper wrapped around a small screwdriver and carefully sand out the holes to the point where the gear will just slide with minimal effort
onto the shaft:



Once these 2 gears can be placed easily on their shafts I get some Gorilla glue and put a thin film around the shaft where the gear sits,
and then press the gear in place, turn it around a little bit to make sure the gear is evenly turning around and then let the glue dry.

For gear number 1, you do not sand it quite as much as for 2 and 3, as it is supposed to have a friction grip on the metal shaft, so lightly sand the hole
till it can be pressed onto it's shaft with a little effort. You'll see that when it's split it will turn very easily on the shaft and just after the split is repaired
it cannot be placed / pressed back onto the shaft without quite a bit of force enough to cause the repaired split to crack again, hence needing to be sanded out a bit so it
can be fit on the shaft again. Don't mix up the gears as the center holes are of different sizes.

While you have the tuning assembly apart and out it's time to try and clean the old oil and grease from the shaft holes and mhz capacitor.
I use engine motor oil for this as it won't dry out rapidly and generally stays in place where you put it. Everything should turn pretty easily with fresh lubrication
again reducing any stress placed on the nylon gears.

Good Luck Smile
avatar
LarryC
Member
Member

Number of posts : 80
Registration date : 2008-03-12

Back to top Go down

Re: DX-300 from eBay

Post by Southerner on Fri Sep 08, 2017 12:42 am

This looks very similar to my DX302. I am or was on one forum where the subject came up. I was told to replace the gear with a RC car gear. The info was:
36 teeth
64 pitch
shaft size .218 (Why was a .242 drill bit too tight?)
.596 across
.162 thick
Robinson Racing Products gear #RRP-4336
I had to drill out the hub of the metal gear to 0.242" diameter to match the DX302 shaft. This was the small gear which I think is the Mhz gear but don't recall specifically.

I have also been told that we should never put any oil on nylon gears.
