I have decided to "divide" the cabinet up into sections.  This will make it easier for me to manage certain details and to fight the humidity.

The sliding lids have been grain filled and an additional coat of shellac has been applied.  Next step is to flat sand ready for final finish.



A close-up of the lids grain filled.



Those lids are not perfect, but they are quite acceptable and have come a long way since this project started.

Everything but the top has been masked off.  I am going to finish the top completely, then move to another area.



The first coat of finish applied to the top of the cabinet.  This gets wet-sanded with 600 grit and EVOO or mineral oil and then the final coat will be sprayed on.



The top section is getting really smooth now.  The final coat should finish filling any small imperfections that remain.  The gloss of the finish should be a clue as to what it is.  Gloss polyurethane.  The high humidity was causing too many blushing concerns using shellac as the final finish.  I could not get the gloss right, given my limited experience.  Hopefully this decision will eliminate the humidity concerns, since poly flashes off with a chemical reaction, not from the venting of solvents.  Poly will require at least 72 hours before it can be sanded.


Wildcat445
Member
Member

Number of posts : 5168
Registration date : 2011-09-19

Back to top Go down

Re: Restoration on Magnavox Stereo Model 1ST616

Post by Wildcat445 on Sun Jun 26, 2016 8:55 pm

I have been playing with the electronics while I wait on stuff to dry.

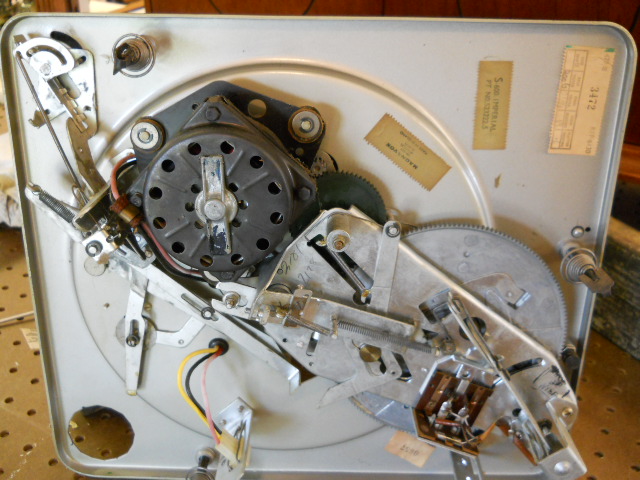

I hope I don't jinx something mentioning this, but the Collaro changer in this stereo is the most forgiving one I own.  This thing simply does what it is supposed to do without drama.  It needs a new drive tire, motor mounts and the usual tune-up, but this thing is a sweetheart.
