In need of a schematic
by goldc320 on Fri Jul 15, 2011 5:00 pm

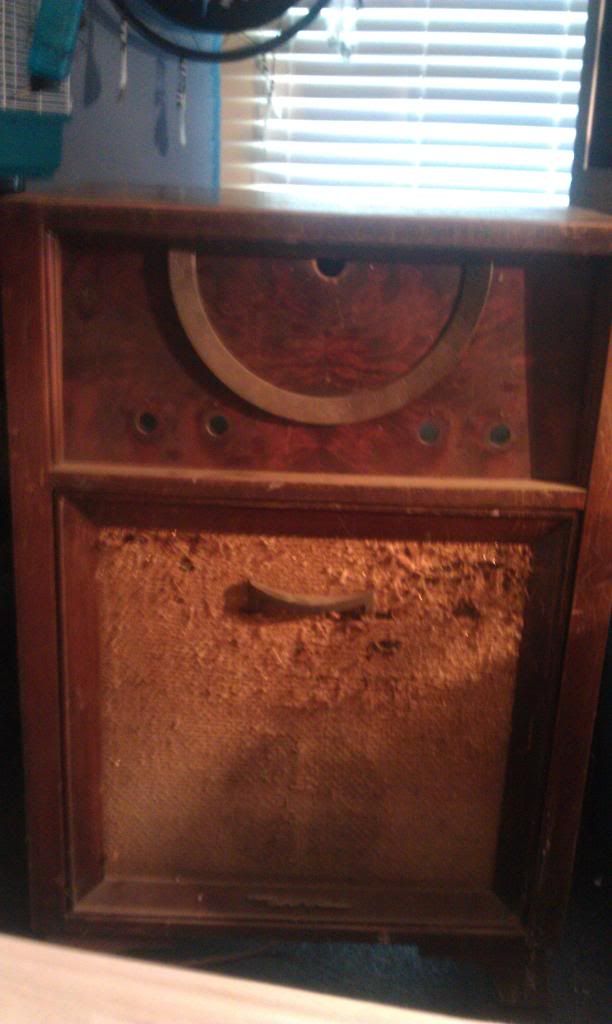

Hi all, new to the forum here and was hoping for some help. I recently acquired a motorola tube radio/turntable. Its AM/FM and plays 33s 45s and 78s. Im not sure the model tho. I jumped the gun and took it apart to check the amp and the turntable out, bud here are some pics to hopefully help get an idea of what I've got here.

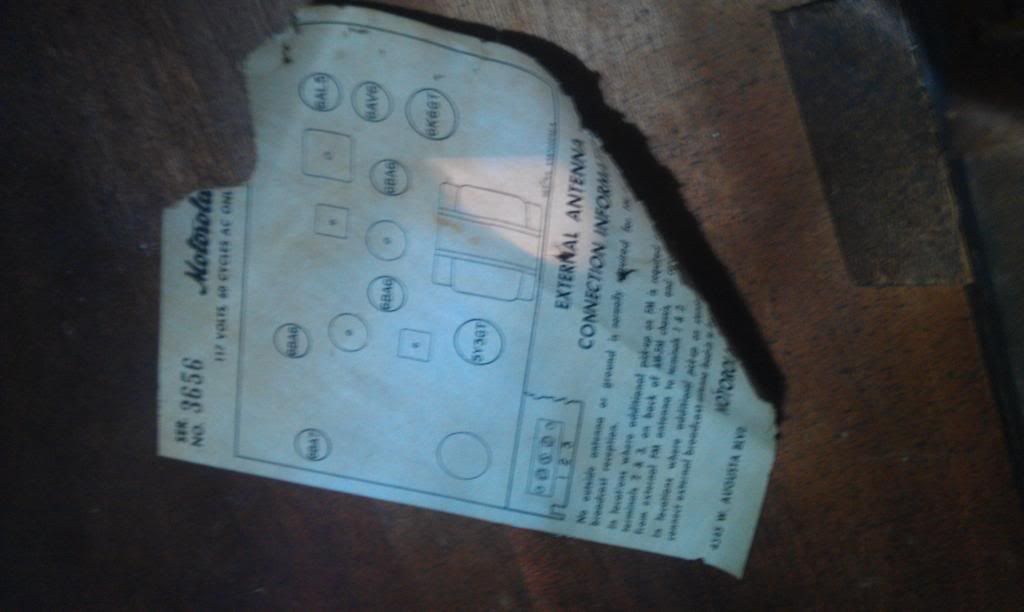

and the only documentation in the cabinet is
I have googled the series number and looked for pictures of models that look similar to mine with no luck of finding anything really.

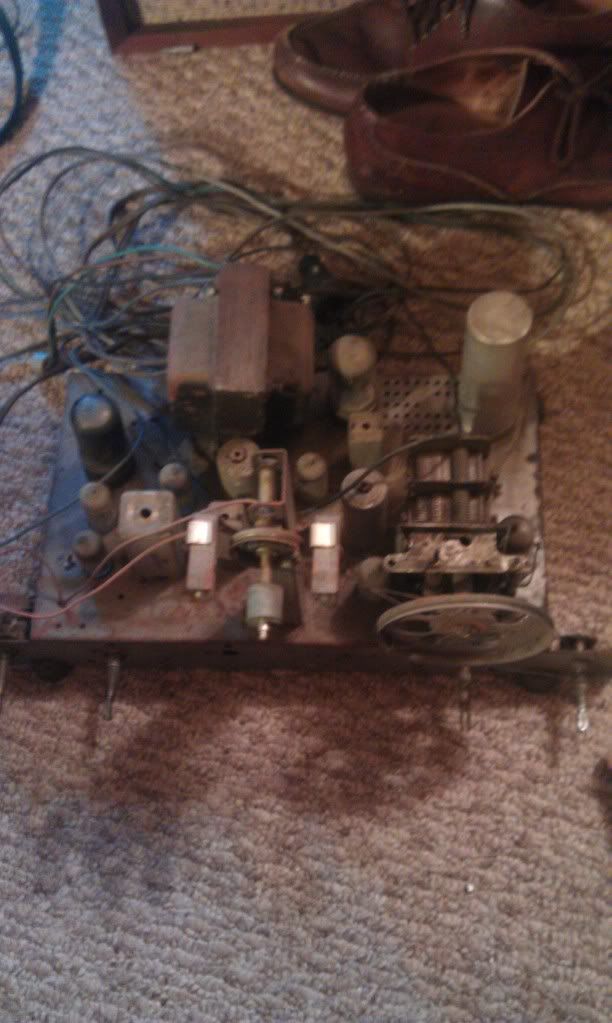

Heres a pic of the amp if it helps
and the only documentation in the cabinet is
I have googled the series number and looked for pictures of models that look similar to mine with no luck of finding anything really.
Heres a pic of the amp if it helps
goldc320- New Member
- Number of posts : 1
Registration date : 2011-07-15
Re: In need of a schematic
by Bill Cahill on Fri Jul 15, 2011 11:49 pm
Looks like about a 1952 model.You should have model somewhre, or, chassis number on chassis.
Other numbers will do you no good.
Looks pretty dirty. Should do well when restored.
Bill Cahill
Other numbers will do you no good.
Looks pretty dirty. Should do well when restored.
Bill Cahill
_________________
Please also join us here; http://videokarma.org/index.php
Bill Cahill- Admin
- Number of posts : 4523
Age : 66
Registration date : 2008-03-12
Re: In need of a schematic
by Resistance is Futile on Sat Jul 16, 2011 12:58 am
Its a Model 8FM21,red Brown mahogany
For the Schematic look in
Riders Volume 21 page 21-105 thru 113 (starting with Page 650 0f 1616 pages in PDF copy)
PM sent
For the Schematic look in
Riders Volume 21 page 21-105 thru 113 (starting with Page 650 0f 1616 pages in PDF copy)
PM sent
Resistance is Futile- Member
- Number of posts : 976
Age : 73
Registration date : 2008-03-12
Re: In need of a schematic
by Resistance is Futile on Sat Jul 16, 2011 6:07 pm
Email sent with Schematic attached.
Resistance is Futile- Member
- Number of posts : 976
Age : 73
Registration date : 2008-03-12
